What size should ceiling joists be

Though there is no standard joist size for the ceilings in all buildings, most average homes use ceiling joists in a board size of 2-by-6 inches. The range of joist sizes used in homes varies though, between 2-by-4 inches and 2-by-12 inches.

What is the maximum span of a 2x6 ceiling joist?

The maximum distance a 2×6 can span, according to the 2018 IRC, for a floor joist, is 12′-6”, ceiling joist 20′-8”, rafter 18′-0”, deck board 24”, deck joist 9′-11”, deck beam 8′-3”, and 6′-1” as for header. Always check the codes for determining factors or consult a Structural Engineer.

How far can a 2x8 span for ceiling joists?

Depending on various factors, the maximum span for a 2×8 floor joist is 16′ 6”. The maximum span for roof rafters is 23′ 9”. For headers, the maximum span is 11′ 2”.

What size joists should I use?

For example, assume the clear span is 15 feet 6 inches. Round up to 16 and divide this span by 2, giving you 8. Next, add 2 to get the required joist depth. In this example, 8 + 2 = 10, so a 2×12 floor joist will be required (it’s important to use the actual lumber dimensions, not the nominal dimensions).

How far can a 2x6 ceiling joist span without support?

2-grade 2×6 joists can span up to 10 feet 9 inches from beam to beam when spaced the standard 16 inches apart with a maximum live load of 30 inches per square foot. In comparison, No. -1 grade lumber can span slightly further to 10 feet 11 inches under the same parameters.

How far apart can ceiling joists be?

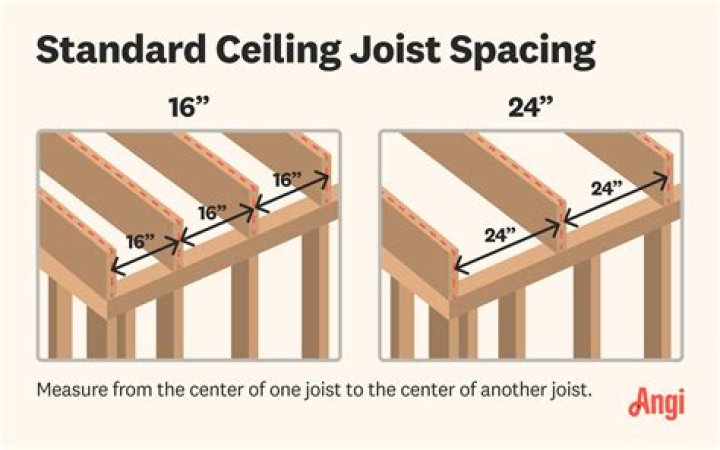

Ceiling joists are usually installed either 16 or 24 inches on center, which means roughly 16 or 24 inches apart. Once you’ve located the first one, the others are easier to find. If you only need to know which direction the joists run, access the attic and take a look.

What size ceiling joist do I need for a 12 foot span?

CEILING JOIST SPACING (inches)SPECIES AND GRADEDEAD LOAD = 5 psfMaximum ceiling joist spans(feet – inches)12Douglas fir-larch13-2Douglas fir-larch12-8

What size ceiling joists do I need UK?

C16Dead load per square metre (in kN/m²) supported by joistsNot more than 0.25Joist size Width × depth (mm)Permissible clear span (metres)38 × 721.1471.11038 × 951.6931.623

What size beam do I need for a 12 foot span?

A double ply beam can span in feet if there is no overhang beyond it. A double 2×12 beam can span 12 feet, a double 2×10 can span 10 feet, and so on.

How big of a beam do I need to span 16 feet?

Wood beam size for a 16 foot span:- as per general thumb rule, for a 16 foot span, size of wood beam or lumber joist should be 2×10 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 250mm (10″) and width of beam is 50 mm or 2″.

Article first time published on

Can a 2x8 span 16 feet?

Span is determined by species, grade, dimensions, spacing, use, and load. A rule of thumb is 1.5 times a joist’s depth but in feet when spaced at 16” centers. In general, a 2×8 will span 1.5 x 8, so 12-feet. Based on all factors though, a 2×8 joist span is 7′-1” to 16′-6”, and a rafter 6′-7” and 23′-9”.

What is the maximum span for a 2x10 ceiling joist?

Joist spacing of 24 inches is allowed for spans between 16 to 20 feet using 2-inch by 10-inch lumber of these three grades.

What will a 2x10 span?

Douglas fir 2-by-10 joists graded as “Structural Select” allows joist spans up to 21 feet for a live load of 30 pounds per square foot when spaced 12 inches apart, 19 feet 1 inch for 16 inch spacing and 16 feet 8 inches for 24 inch spacing.

Are ceiling joists load bearing?

Walls that run perpendicular (at a 90 degree angle) to the ceiling joists are load-bearing. Walls that run parallel (in the same direction) as the ceiling joints are non load-bearing. Ceiling joists are spliced over the wall.

Which way do ceiling joists run?

An important thing to know about joists is that they usually run in the same direction throughout a house. If the visible joists in a basement or attic run east to west, for example, you can be fairly certain the invisible joists under the bedroom floor also run east to west.

What's the difference between joists and rafters?

The main difference between Joist and Rafter is that the Joist is a horizontal structural element transferring load from flooring to beams, typically running perpendicular to beams and Rafter is a structural members in architecture.

How far can I span a 2x4 ceiling joist?

A 2×4 can span a maximum of 6′ 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7′ 3” spaced at 16”, and 6′ 4” when spaced 24” apart.

How far can 2x12 floor joists span?

Maximum Span (ft – in)Nominal Size (inches)Joist Spacing Center to Center (inches)Lumber Grade2 x 121223′ – 0″1619′ – 11″2416′ – 3″

Do ceiling joists need hangers?

Building codes direct that ceiling joists attach to — rather than hang from — either roof rafters or the top plates of exterior walls; three nails must be toenailed through the joist to secure it in place. … A code-compliant connection includes the use of metal joist hangers, just like those used on outdoor decks.

What size beam do I need for a 15 foot span?

Wood beam size for a 15 foot span:- as per general thumb rule, for a 15 foot span, size of wood beam or lumber joist should be 2×10 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 250mm (10″) and width of beam is 50 mm or 2″.

How far can a 2x12 Rafter span without support?

Maximum Span (ft – in)Nominal Size (inches)Rafter Spacing, Center to Center, OC (inches)Lumber Grade2 x 121233′ – 6”1629′ – 5”2424′

What size beam do I need for a 24 foot span?

For 24 foot span, size of simply supported beam for 2-3 storey residential building, using thumb rule, is about 15″×18″ in which beam width is 12″ and beam depth is 15″, if width will be kept 12″, depth should increased, then beam size 12″×24″ can be used, providing with 4nos of 16mm bar at top, 4nos of 20mm bar at …

What timber do you use for joists?

Lumber Grade Lumber graded as #2 is the most common choice for floor joists and other framing lumber. It has more knots and defects than higher grades, but usually not enough to cause significant loss of bending strength.

What size are ceiling beams?

The width and depth of decorative beams should be proportional to the size of the room. The bigger the room and the higher the ceiling, the wider and deeper the beams. In rooms with 8 or 9-foot ceilings, beams that are about 5 inches wide and 3 inches or so deep are typical.

How deep is a ceiling joist?

Most homes use ceiling joists in a board size of 2 by 6 inches, even though there is no standard size for the ceilings in all buildings. Depending on the size of the home, the range of sizes is between 2 by 4 inches and 2 by 12 inches.

How big of a beam do I need to span 20 feet?

Wood beam size for a 20 foot span:- as per general thumb rule, for a 20 foot span, size of wood beam or lumber joist should be 2×14 which placed at 16″ apart from centre used for residential building or projects or construction in which depth of section of beam is 350mm (14″) and width of beam is 50 mm or 2″.

How far can a 4X10 beam span?

Joist SpansDouglas Fir-Larch, Hem-Fir, Spruce-Pine-Fir, Redwood, Cedars, Ponderosa Pine, Red Pine4X108′-4″4X129′-8″3-2X66′-5″3-2X88′-3″

How much load can a 2x8 support?

Span (feet)Weight Supported (lb)2 x 2″ x 6″2 x 2″ x 8″42250469061680313082660

What size header is needed for a 10 foot span?

1 Answer. A header of that size should be double 2×10, or at least 2×8. Sag is a concern (you don’t want your windows to bind), but lateral stability is also.

Do ceiling joists need blocking?

According to Section 6.3: “Rafters and ceiling joists having depth to thickness ratios exceeding 5:1 (e.g., 2×10) need blocking at their points of bearing to prevent rotation or displacing laterally from their intended position …

Can a 2x10 span 15 feet?

As the table shows, no 2×8’s meet the span and spacing requirements, but a 2×10 with an E of 1,300,000 psi and Fb of 1093 psi can span 15 feet 3 inches – more than enough.
