Where do you put a surge protective device

In an electrical systems, surge protection devices (SPDs) are usually installed in tap-off configuration (in parallel) between the live conductors and the earth. The operating principle of SPD can be similar to that of a circuit breaker.

Where should a surge protection device be installed?

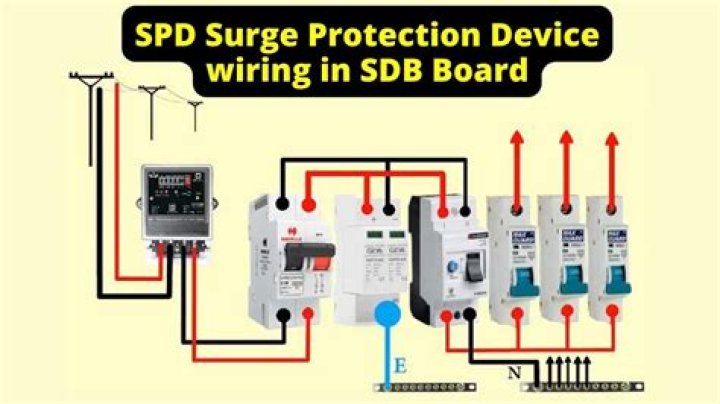

Surge protection (type 1 or type 2) should be fitted at the origin of the supply to the property. This can be installed inside the existing consumer unit, fed from the consumer unit and fitted in its own enclosure, or fed from the supply tails and fitted in its own enclosure.

Does a surge protector go on line or load?

Circuit breakers are for preventing longer-duration over-current conditions. So… surge protectors are installed across the line (since they react to voltage) and circuit breakers are in series with the line, because they react to current.

Where do surge protectors go?

A whole house surge protector that is installed at your circuit breaker panel within the house. It is wired directly into a dual-pole breaker, which is in your main breaker. And in some cases can be routed through your sub-panel for down-streaming.

Do domestic properties need surge protection?

In the previous edition of the IET Wiring Regulations, BS 7671:2008+A3:2015, there was an exception for some domestic dwellings to be excluded from surge protection requirements, for example, if supplied with an underground cable, but this has now been removed and it is now a requirement for all types of premises …

Does a surge protector protect both ways?

2 Answers. Well, it’s not really a glorified capacitor, but yes, it will work both ways.

How do surge protective devices work?

A surge protector guards against the damage that sudden power surges can cause. It works by pulling the current from one outlet and passing it through to the devices you have plugged into the surge protector.

Do surge protectors actually work?

Surge protectors will indeed protect computers and other electronic devices from power surges and most distant lightning strikes, but they can’t prevent a direct lighting strike from causing damage to connected devices.

Is surge shield worth the money?

Surge protection protects your appliances and devices from voltage spikes. Given the amount of power that appliances and devices now have, surge protection is more important than ever. If you have too much voltage running through an outlet, it can cause electrical issues or even a fire.

What happens when a surge protector trips?

When a circuit breaker trips, it means there was too much draw on that circuit. The switch temporarily shuts off the circuit, and you’ll lose power to part of the house. When this happens, we recommend you shut off all appliances in the area and unplug the outlets.

Article first time published on

Does a surge protector prevent blowing a fuse?

A fuse, then, is a very drastic form of protection: if anything happens, it shuts off the electricity completely. A surge protector is designed to smooth out smaller fluctuations in voltage and it doesn’t normally shut down the circuit when a problem occurs.

How do you surge protect a house?

Guarding against surges requires a two-pronged approach: a whole-house suppressor to tame the big, dangerous power spikes and an individual circuit (or “plug-in”) surge suppressor for vulnerable appliances and electronic devices.

Do I need to install surge protection?

Do you really need surge protection? If electrical equipment is used then a surge protection device is definitely needed as electrical equipment comes with sensitive components that could be damaged very easily. A surge protection device will increase the longevity of electrical equipment.

Is a SPD required?

Employers are required to provide an SPD for each plan. Subsequently, they can use an SPD wrap document to include all welfare benefit plans.

What can you not put in a surge protector?

• Large Kitchen Appliances (Refrigerator, Dishwasher, etc.) These appliances are so high-powered that they’ll easily overload a poor, little power strip. …
• Small Kitchen Appliances. …
• Hair Styling Tools. …
• Extension Cords and Other Power Strips.

What is the purpose of surge protector device in equipment?

A typical surge protector passes the electrical current along the outlet to number of the devices plugged into the power strip. If the voltage happens to rise above the acceptable level, the protector will divert the extra electricity into the outlets grounding wire.

Does a surge protector work without a ground?

Without grounding, it’s also impossible to protect your electronics and appliances with surge protectors. Surge protectors work if they connect to a ground wire. Without this, they offer no better protection for electronic devices than multi-prong outlets.

Do I need surge protector for TV?

Desktop computers, laptops, televisions, gaming systems, and charging phones should all be plugged into a surge protector, so they aren’t damaged in a storm. … Although items like coffee pots or alarm clocks can feel like the most important items to protect in your home, they do not need surge protectors.

Are surge protectors directional?

The surge protector should be installed between the outdoor antenna and the amplifier. … Surge protectors are bi-directional, meaning they can’t be installed backward.

How long are surge protectors good for?

Yep, that’s right: Surge protectors don’t last forever. Most estimates put the average lifespan of a surge protector at three to five years. And if your home is subject to frequent brownouts or blackouts, you might want to replace your surge protectors as often as every two years.

Should I turn off surge protector at night?

Sure, but unless you turn off the power applied to it, it will remain subject to line transients at the outlet. Presuming you don’t want to download stuff to the Xbox overnight, there’s no reason it’s not a great idea to kill it all.

Can you plug a surge protector into an extension cord?

Can You Plug a Surge Protector Into an Extension Cord? On paper, yes, you can. The biggest thing is making sure the extension cord can handle the same amount of load as the surge protector (or more).

What kind of surge protector do I need?

Choose a surge protector with a joule rating at the very least in the 200 to 400 range. Sensitive or costly equipment, such as computers, displays and audio/video equipment, warrants a joule rating of at least 1000. A joule rating over 2000 indicates maximum protection.

Do Cheap surge protectors work?

Those cheap surge protectors are little more than power strips for more outlets. If they do offer any suppression ability. They’ll keep working once the suppressor bit has worn out leaving you totally unprotected. A good quality surge strip stops functioning once the surge protector mechanism has burned out.

Do I need surge protector for Iphone?

Answer: A: Answer: A: Everyone should have surge protection/line filters when an electrically sensitive piece of equipment is plugged into the wall. Storms, black out, brown out, and surges can happen anytime.

Does a surge protector only work once?

There’s no exact lifespan we can give you, and it varies from area to area — it depends how many surges occur in your area as well as how many joules your protector can absorb. Many people recommend replacing a surge protector every two years or so, but any recommendation like this one can only be a rule of thumb.

Do surge protectors make noise?

Yes, surge protector makes noise. This is true for all electrical devices and components. However, surge protectors are not loud. Even though they are supposed to click whenever they encounter a surge, surge protectors that produce loud clicks, buzzing, crackling, and popping are most likely faulty.

What does the red light mean on my surge protector?

The red protection light indicates that your surge protector is providing surge protection for your equipment. If the red light is out, it means that the surge protector has been damaged by a severe surge and a new one should be purchased.

Why would a surge protector trip?

Your surge protector may be clicking due to mini surges, known as spikes, from the operation of other electronics. Running a blender or vacuum cleaner may cause a temporary surge in the electricity to the outlet your surge protector is plugged in to, causing it to click to divert the excess power.

Can you overload a surge protector?

Multiple outlet power strips (surge protectors, temporary power taps, plug strips, etc.) DO NOT exceed the load (ampacity) rating of the power strip. … Most 120-volt power strips are rated at a maximum cord and plug load of 12 amps.

How do you stop a power trip?

1. Examine Your Electrical Wiring.
2. Avoid Overloading Your Main Power Supply.
3. Avoid Tinkering With Important Electrical Devices.
4. Do not Forget To Pay Your Electric Bills.
5. Ask A Professional To Troubleshoot Your System.
6. What If A Power Trip Is Inevitable?
7. Conclusion.
