Where is the crankshaft position sensor located on a 2000 Nissan Maxima

There are two crankshaft position sensors on this engine: one at the front of the engine by the crank pulley, and the other at the flywheel area.

Where is the crankshaft position sensor located?

The sensor is at either the front or the back of the crankshaft, so it’s usually located either on the transmission bellhousing or behind the crankshaft pulley. There should be a small air gap, usually about a millimeter or two, between the sensor and the reluctor.

Where is the crankshaft sensor on a Nissan?

The crankshaft position sensor is installed on the transmission housing where the transmission attaches to the engine block. Press the small tab on the connector and unplug the electrical connector by pulling it away from the sensor.

What are the symptoms of a failing crankshaft position sensor?

Common signs of a faulty crankshaft position sensor include issues starting the vehicle, intermittent stalling, and the Check Engine Light coming on.

How many crankshaft sensors are on a 2000 Nissan Maxima?

There are two crankshaft position sensors on this engine: one at the front of the engine by the crank pulley, and the other at the flywheel area. One sensor detects the 1 degree signal of the sensor, and the other the 120 degree “top dead center”position.

Will disconnecting battery reset crankshaft sensor?

To reset the check engine light you can disconnect the battery via the negative battery terminal and let the vehicle sit for an hour before reconnecting the battery. … A failed crankshaft position sensor will generally cause the vehicle to stalls when it’s running or cause the vehicle to not start at all.

How do you test a Nissan crankshaft position sensor?

1. Unplug the CKP sensor electrical connector.
2. Set your digital multimeter to DC voltage scale using a low range.
3. Turn the ignition key to the On position, but don’t start the engine.
4. Touch the DMM black lead to ground.

Can you drive with bad crankshaft sensor?

Is it safe to drive with a bad crankshaft position sensor? ”It is not safe to drive with a bad crankshaft position sensor because if the crankshaft position sensor is faulty, it can no longer supply the engine control unit with correct information about the position of the crankshaft.

What is the 7 symptoms of a bad camshaft position sensor?

• Check Engine Light Comes On. The most common indicator that the camshaft position sensor is failing is a lit Check Engine light. …
• Poor Drivability. …
• Transmission Shifting Problems. …
• Bad Fuel Economy.

Will a bad crankshaft sensor throw a code?

A failing or failed crankshaft position sensor may cause the check engine light on your dashboard to come on. A diagnostic scan tool will show a code between P0335 and P0338.

Article first time published on

Will crank sensor cause no start?

A bad Crankshaft Position sensor is a common cause of no starts. The signal from this sensor goes to the PCM or ignition module that switches the ignition coil(s) on and off. If you have an RPM signal, a bad ignition module or PCM may not be switching the coil(s) on and off.

Where is the crankshaft position sensor located on a 2004 Nissan Maxima?

The crank sensor is located at the bottom center of the engine just below the flywheel area.

Can you repair a crankshaft position sensor?

Once they have verified that it is the crankshaft position sensor causing the problem, then you can proceed to have the sensor replaced. The replacement cost of the crankshaft position sensor is anywhere from $120 to $300. The cost of the part itself will be around $75 to $120.

How do you clean a crankshaft sensor?

Spray a small amount of solvent on the sensor. Wipe it dry with another rag. Replace the camshaft sensor, and tighten the screws. Attach the three wires back into their original positions, and connect the negative battery cable.

How do you start a car with a bad crank sensor?

How to start a car with a bad crankshaft sensor: turn on the ignition if and only if you have the check engine light on and minimal symptoms beyond that. If your car misfired once or twice, or if you just started to notice uneven acceleration, it is drivable but time to take it to the shop.

What makes crankshaft sensor go bad?

There are a few things that can cause the crankshaft position sensor to fail, including damage, debris and faulty circuitry. Even for modern electronics, the engine is a violent and destructive environment. Though built for this, most sensors eventually succumb to the ever-present heat and vibrations of the engine.

How do you reset a crank sensor without a scanner?

1. Turn off all of the accessories. …
2. Accelerate the vehicle to 55 mph at part throttle. …
3. Cruise at 55 mph for another 5-6 minutes.
4. Decelerate to 45 mph without using the brakes, and maintain 45 mph for 1 minute.
5. Perform 4 deceleration cycles, without using the brakes, of 25 seconds each where no specific speed is necessary.

What's the difference between a camshaft sensor and a crankshaft sensor?

The crankshaft position sensor monitors as a multifunctional sensor used to set ignition timing, detect engine RPM and relative engine speed. … The camshaft position sensor is used to determine which cylinder is firing to synchronize the fuel injector and coil firing sequence.

How long does it take to replace a crankshaft sensor?

The labor to replace the sensor is just under 1.5 hours according to my labor guide and the part is approx $50.

What causes a camshaft position sensor to go bad?

A camshaft position sensor can fail due to an accident. In the event of a failure, it may be necessary to replace the engine control module and associated wiring. Circumstances like an oil leak due to a bad head gasket or defective or loose oil cap can interrupt the sensor’s signal from the wires.

How much does it cost to get a crankshaft sensor replace?

The sensor will cost somewhere between $50 and $100 depending on the manufacturer. However, installation can really vary depending upon the car, and in some cases runs upwards of $600 to $700 or more.

How much does a crankshaft sensor cost?

The average crankshaft sensor replacement cost is between $150 and $250. However, it’s not uncommon for those prices to skyrocket if you have a higher-end vehicle. That’s because the labor costs are typically between $90 and $110.

Can a crankshaft sensor cause a car to go into limp mode?

Limp Mode means the engine is not able to perform as it should and has been incapacitated . If the engine starts, then definitely it cannot be due Cam Position Sensor or Crank Position Sensor malfunction. It could be Coolant Temperature Sensor or the Manifold Pressure Sensor which can cause this in an engine.

Does crank sensor control fuel pump?

Technically the crank sensor does indirectly control the fuel pump on a lot of vehicles, when the ignition is switched on the pump runs for a couple of seconds to pressurise the system, it then stops and will only start to run again when the engine starts to rotate, this rotation is sensed by the crank angle sensor …

Can you bypass a crank position sensor?

No. You just cannot bypass the crankshaft sensor, the car will crank but will not start. The DME needs to see this signal in correlation with the cam sensor for start up and fuel injection sequence.

Should you reset crankshaft position sensor?

What are the symptoms of a bad crank position sensors? – Quora. There is nothing to reset. If you have a faulty one, all you can do is replace it. The symptoms of a fault will typically be a failure to start, but you may get poor running if it does start.

Will a bad camshaft sensor cause rough idle?

Engine Idles Roughly: A rough idling engine could be caused by a failing camshaft position sensor. This issue is more evident when the engine is idling. Hesitation: Hesitation during acceleration is a common issue that you may experience with a bad camshaft sensor.

What does a crank position sensor do?

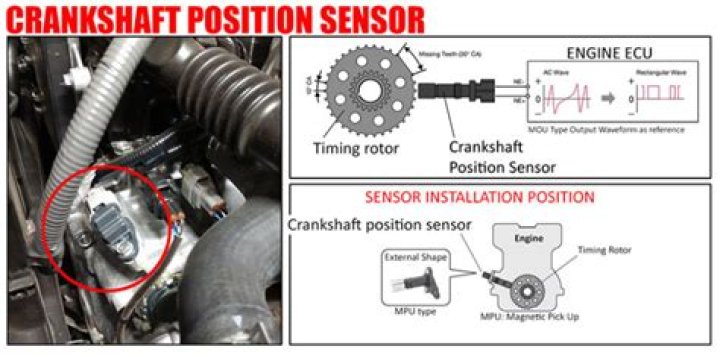

The Crankshaft Position Sensor is attached to the engine block facing the timing rotor on the engine crankshaft. The sensor detects signals used by the engine ECU to calculate the crankshaft position, and the engine rotational speed.

What sensor would stop a car from starting?

Bad crank or cam sensor or sensor wiring A crankshaft position sensor (crank sensor) is an important device measuring the engine RPM and tracing the crankshaft position. The car won’t start if the crankshaft position sensor doesn’t work properly. The crank sensor can fail, or its wiring can get damaged.
