Where is the HVAC unit

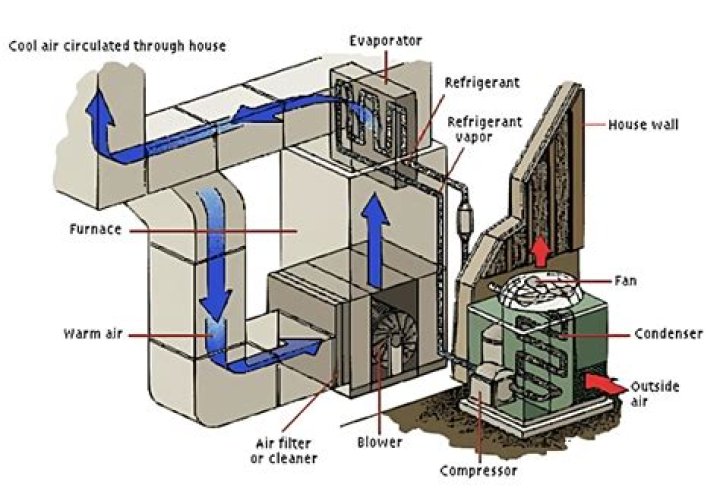

A packaged HVAC system contains the compressor, condenser, and evaporator all in one unit, often located on a roof or near the foundation of the building or home.

Where is the HVAC unit located?

The indoor unit is typically located in a closet or basement, and is near where your furnace filter is located. The unit consists of a coil box that contains what is called an evaporator.

Is the HVAC inside or outside?

Although part of a split HVAC system is located outdoors, it doesn’t use outdoor air to heat and cool the home. Typically, there is a unit that produces cool air and a furnace that produces warm air. The air conditioner unit is often placed outside of the home and contains a condenser coil and a compressor.

Where are most HVAC units located?

The most common type of HVAC system is central air conditioning and heating. Here’s where the components are usually located: Ductwork. Ductwork is usually located in the attic, the basement, or in a dropped ceiling chase.

What is the indoor HVAC unit called?

When you look at your HVAC system, you only see two boxes – one that sits outside your house, and the other inside your home in the garage, attic or basement. The outside components box is called the condenser while the inside box is the air handler.

Where should an outside AC unit be installed?

Your condenser unit should be placed in a space that allows it to breathe freely. This means there should not be any large obstructions within at least 3-4 feet of your unit. If your home has multiple condenser units, they should be placed far enough away from each other that they do not hinder one another’s airflow.

What is HVAC system in house?

Defined: HVAC stands for Heating, Ventilation, and Air Conditioning. HVAC refers to the different systems used for moving air between indoor and outdoor areas, along with heating and cooling both residential and commercial buildings.

How large is an HVAC system?

House Square FootageBTUs Needed450 – 50012,000500 – 70014,000700 – 1,00018,0001,000 – 1,20021,000

How are HVAC units sizes?

Size Matters HVAC units are sized to the amount of cubic feet that they need to heat and cool in a space. … The proper sizing of a residential system depends on factors such as heat loss and gain, ductwork and sunlight.

Is my AC unit inside?

The indoor unit will usually be located inside of a closet or the basement. If you know where your furnace is located, you should also know the location of the indoor unit. Inside, there will be a condenser coil with Freon, which is a type of refrigerant, inside of the box.

Article first time published on

Where does Central AC get air from?

Cleaner air – As your central air conditioning system draws air out of various rooms in the house through return air ducts, the air is pulled through an air filter, which removes airborne particles such as dust and lint. Sophisticated filters may remove microscopic pollutants, as well.

Where do air handlers go?

Most often, air handlers are located in the attic, basement or a dedicated closet, and may closely resemble the shape of a gas furnace.

What is the outside AC unit called?

The outside unit of an air conditioning system is often called the condenser unit because the condenser plays a key role in how it works. Check out all of the most important parts.

Do AC units need to be outside?

The main purpose of air conditioning is to cool a warm area. To do that, air conditioning units use a cooling agent called refrigerant that absorbs the heat from the air, using a fan to redistribute that cool air. … That’s why you need to use a hose to vent that warm air from a portable AC unit outside.

Does AC unit have to be outside?

In short, no. Though in split system air conditioners design, commonly heat pumps, part of your system is located outside your home, it does not take in outside air. Its main operational purpose of cooling the air in your home is not achieved by moving cool air inside, but by moving unwanted heat out.

How much does a HVAC unit cost?

According to HomeAdvisor, full HVAC unit replacement costs range from $5,000 to $10,000, with the national average at $7,000. This comes out to about $25 to $60 per square foot. Prices depend on the size and brand of the HVAC system, the size of the house, ductwork length, and the new unit’s efficiency rating.

How long does HVAC unit last?

A heating or cooling system is a significant investment, and it only makes sense to get as much use out of it as possible. In general, most HVAC systems will last from 15 to 25 years, but depending on the type of system and other contributing factors, that estimate can be highly variable.

Does HVAC use gas or electricity?

Air conditioners use electricity. Most home heating systems use gas or fuel oil; other systems use electricity. The heat pump — an electrically powered climate control unit — both heats and cools air.

How close can air conditioner be to house?

The general rule of thumb is to have at least one foot (or 12 inches) of clearance on each side of your air conditioner. Your air conditioner’s manufacturer may have specific clearance recommendations, but they’ll generally recommend between 12 and 24 inches.

Where is the condenser located on a central AC unit?

Your air conditioner’s condenser is contained in the large, square unit outside your house. Although the whole unit is called the “condenser unit,” it actually contains multiple components, including the condenser tubes and fins, the compressor, a fan and copper tubing, as well as valves and switches.

How big of an AC unit do I need for 2300 sq ft?

ZONE 1ZONE 52.5 Tons1201 – 1500 sf1401 – 1650 sf3 Tons1501 – 1800 sf1651 – 2100 sf3.5 Tons1801 – 2100 sf2101 – 2300 sf4 Tons2101 – 2400 sf2301 – 2700 sf

What size AC unit do I need for a 2000 square foot home?

Home Sq FootageAir Conditioner Size (tons)600 – 1,000 square feet1.5 tons1,000 – 1,500 square feet2 tons1,500 – 2,000 square feet3 tons2,000 – 2,500 square feet4 tons

What is SEER in HVAC?

SEER stands for Seasonal Energy Efficiency Ratio. This is the ratio of the cooling output of an air conditioner over a typical cooling season, divided by the energy it uses in Watt-Hours. It may also be called a Seasonal Energy Efficiency Rating.

What happens if AC unit is to big for House?

An oversized HVAC unit can make your home’s inside temperature uncomfortable. An HVAC system with excess capacity can heat or cool your home faster, but that speed often results in a couple of other issues. … As a result, you could end up with a number of hot or cold spots throughout your home.

How much does a 2 ton AC unit cost?

Central AC Unit SizeAC & CoilAC & Coil Installed Cost1.5 Tons, 18,000 btu$940$1,8952 Tons, 24,000 btu$1,490$2,6902.5 Tons, 30,000 btu$1,525$2,6953 Tons, 36,000 btu$1,650$2,990

How much is a 2 ton AC unit?

Central Air Conditioner SizeAC Unit BTUAC Unit Only2 Tons24,000 BTU$2,6202.5 Tons30000 BTU$2,8953 Tons36000 BTU$2,9203.5 Tons42000 BTU$3,550

Why is my outside AC unit not coming on?

AC not turning on could be the result of a blown fuse located at something called a safety shut-off box. This should be found close to your AC unit. Check to see if you have a blown fuse, and be sure to replace it if that’s the case. Even if the fuse doesn’t appear to be damaged, go ahead and replace it anyway.

Why is there no air coming from vents in my house?

The most common cause of low air flow through the vents in your home is blocked or dirty AC filters. … Be sure to keep the area around your AC filters clear of furniture and anything else that might block the flow of air, and be sure to clean or change your AC filters once a month.

How does HVAC get fresh air?

Most residential systems use the HVAC air handler fan to pull in clean outside air from a duct through the wall or attached to a foundation vent. The air is filtered just before it enters the air handler and mixed with the return air and then dispersed evenly throughout the building through the supply duct system.

Is air handler same as furnace?

The difference between an air handler and a furnace is that a furnace creates and moves heat. An air handler moves air heated (or cooled) by another source. Air handlers and furnaces are heating and cooling appliances that look very much alike. Their function is similar too.

How much does an air handler cost?

New Air Handler$700 – $1,500Installation$1,200 – $1,800Remove/Dispose of Old Unit$300 – $500Total$2,200 – $3,800
