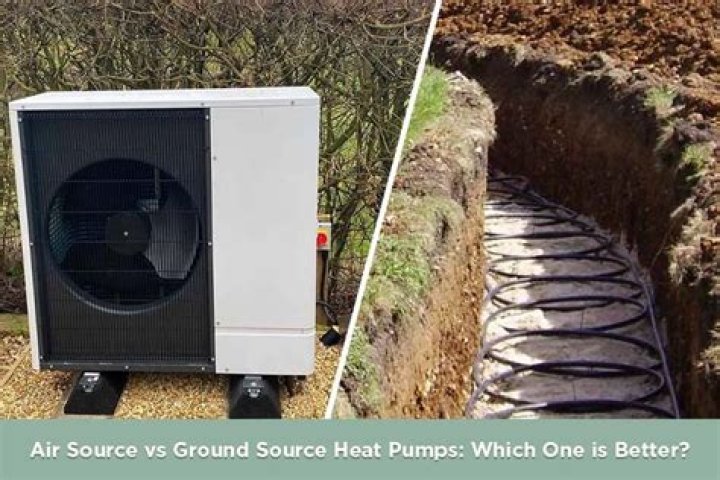

Which is better ground source or air source heat pumps

Ground-source pumps generally save more energy. This is simply because of their use of consistent temperatures below the surface of the earth as opposed to air-source heat pumps use of variable air temperatures outside the home.

What is best ground source heat pump or air source heat pump?

Overall, ground source heat pumps are more efficient than air source heat pumps. This is because heat is transferred through the ground via the movement of water, and as a liquid, water can hold more heat than air can. In more technical terms, the heat capacity of water is around 4 times greater than air.

What are the problems with air source heat pumps?

Air source heat pump problems in cold weather include less efficiency and lower heat supply. When temperatures drop below zero, air source heat pumps have to work harder and so aren’t as cost effective as during the summer.

What are the disadvantages of ground source heat pumps?

They aren’t suitable for every home and require a lot of work to install. The main disadvantages are: Expensive to install. Installing a ground source heat pump requires a large upfront payment.

Are ground source heat pumps worth it?

Are Ground Source Heat Pumps Worth It? Ground source heat pumps are excellent low carbon heating systems that are popular due to their high efficiency rate and low running costs, therefore they can definitely be worth it.

Are air source heat pumps cheaper than gas?

The air source pump will work out cheaper long-term and you can claim much of the initial cost back through a grant but the gas boiler is cheaper up front.

How much land do you need for ground source heat pump?

The maximum length for a loop of pipe will be 400m but depending on the size of the heat pump required you may require 2 or more ground loops. The average system will require between 600 and 1200 square metres of land. This land must be clear of trees and buildings.

How much electricity does a ground source heat pump use?

A ground source heat pump can deliver 3 to 4 kilowatts (kW) of heat for every 1 kW of electricity it consumes. Using freely available heat energy from the ground, it achieves higher efficiency than any other heating system.

How long does a ground source heat pump last?

How long does a Ground Source Heat Pump last? A well engineered commercial ground source heat pump can be expected to last 25 years – ten years longer than a combustion boiler – and the ground heat exchanger, the more expensive part of a GSHP installation, should have a life of over 100 years.

How much does it cost to install a ground source heat pump UK?

What is the cost of installing a ground source heat pump in Britain? Answer: A 6-8 kW horizontal ground source heat pump system usually costs around £10,000 to £12,500 to install. A larger 12kW horizontal ground source heat pump system would cost around £15,500 to £17,500 to install.

Article first time published on

Where is the best place to put an air source heat pump?

Ideally, an air source appliance should be situated in a place that isn’t too hemmed in. For instance, one side of your house may have a narrow alleyway but the other side may be mostly garden. It would be more beneficial to place it on the garden side and not in the narrow alleyway.

Do air source heat pumps work in winter?

While air source heat pumps can withstand cold winter temperatures, there does come a point where extremely outdoor temperatures inhibit their ability to operate efficiently. At between 25°F -40°F (-3.8°C – 4.4°C) they begin to lose efficiency and consume more energy to perform their jobs.

Should I leave my air source heat pump on all the time?

Heat pumps should NEVER be turned off completely. This is because they will be extremely expensive when turned back on as they will try to raise the temperature as quickly as possible. It can also take several days to restore the home to a comfortable temperature. .

What are the disadvantages of geothermal heat pumps?

• High upfront installation costs. Geothermal heat pumps can have significant upfront costs, especially if you need to install or upgrade ductwork on your property. …
• Potential landscape alterations. …
• Open-loop systems may contaminate groundwater.

How much do air source heat pumps cost UK?

What is the cost of air source heat pump installation? An air source heat pump costs more than a new gas or oil-fired central heating system. The typical cost ranges from £4,000-8,000, depending on the pump brand and its heat output. You’ll also need to pay for the installation cost.

How long does it take for a heat pump to pay for itself?

On average, you can expect converting to a heat pump to pay itself off in roughly 8 years, which means that, over the 10-20-year expected lifespan of most heat pumps, you’ll definitely save money.

How deep are ground source heat pipes?

There are two main elements of a ground source heat pump system: The ground array, which can be either a horizontal grid of pipes, which should be 1.2m below ground level, or two or three vertical boreholes, which are likely to be more than 70m deep.

Do air source heat pumps save money?

With an air source heat pump, you can save money on your energy bills and reduce your carbon footprint compared to a gas or electric heating system. One of the key advantages of air source heat pumps is their versatility and affordability.

How efficient is ground source heating?

How efficient are Ground Source Heat Pumps? For every unit of electricity used by the heat pump, three to four units of heat are captured and transferred. In effect this means a well installed Ground Source Heat Pump can be 300-400% efficient in terms of its use of electricity.

Do air source heat pumps work with radiators?

To simply answer the question, YES! Air source heat pumps work well with radiators but before we go ahead, let’s take a look at how these heat pumps work.

What is the cheapest way of heating a house?

Gas is generally much the cheapest form of heating, but its cost depends on a number of factors, including your supplier, tariff and boiler.

Why are air source heat pumps so expensive?

Octopus Energy says in a poorly insulated home it will cost as much as 40% more to run a heat pump rather than a traditional boiler. This is because the cost of electricity includes carbon taxes and subsidies to support low-carbon energy projects.

How noisy are ground source heat pumps?

A ground source heat pump may reach 42 decibels, and an air source heat pump may reach 40 to 60 decibels, but this depends on manufacturer and installation. The noise levels of heat pumps is a common concern, particularly among owners of domestic properties.

How far should an air source heat pump be from the house?

All parts of the air source heat pump must be at least one metre from the property boundary.

How much space do you need for air source heat pump?

There is not enough outside space needed for a ground source heat pump – typically three times the total floor area of the property. For an ASHP, all you need is room for the unit to be fitted to an exterior wall, with enough space around it to get a good flow of air.

How close does an air source heat pump need to be to the house?

Distance from boundary / nearest house: in England and Scotland, the air source heat pump must be at least 1 metre from the property’s boundary. In Wales, it must be more than 3 metres, and in Northern Ireland, the external unit must be more than 30 metres away from the nearest house (other than your own).

What is the lowest temperature a heat pump will work?

Heat pumps do not operate as efficiently when temperatures drop to between 25 and 40 degrees Fahrenheit for most systems. A heat pump works best when the temperature is above 40. Once outdoor temperatures drop to 40 degrees, heat pumps start losing efficiency, and they consume more energy to do their jobs.

Do heat pumps work in old houses?

Heat pumps can be installed in almost any home, however there are some considerations that may need to be addressed, particularly regarding insulation. … Older poorly insulated houses may need higher temperatures than the heat pump can cope with to get the house warm.

Can a heat pump heat a whole house?

As a proven commodity, not only are heat pumps providing Mainers with an efficient way to deliver warmth to specific areas of their homes, increasingly, they are now installing heat pumps as their primary source of heating and cooling throughout the entire home.

What is the best air to water heat pump?

• Daikin Air to Water Heat Pumps. …
• Daikin Altherma Hybrid Pump. …
• Daikin Brine to Water Heat Pumps. …
• Danfoss Air Heat Pumps. …
• Danfoss Opti Pro Ground Source Heat Pumps. …
• Kensa Ground Source Heat Pumps. …
• Kensa Commercial Plantroom Range. …
• Panasonic Air to Water Heat Pumps.

Do you need a hot water tank with an air source heat pump?

You will need a hot water cylinder, to store the heated water, as an air source heat pump doesn’t heat the water quickly enough, unlike a combi boiler.
