Why are magnetic field gradients important for image formation

Key points. Spatial encoding in MR imaging uses magnetic field gradients. These gradients allow the encoding of spatial data as spatial frequency information. These data are mapped into k-space so that an inverse 2D Fourier transform reconstructs the MR image.

What is the purpose for the magnetic field gradients in an MRI?

Magnetic field gradients are needed to encode the signal spatially. They produce a linear variation in magnetic field intensity in a direction in space. This variation in magnetic field intensity is added to the main magnetic field, which is far more powerful.

What is a magnetic field gradient?

What is a gradient? Whenever a magnetic field differs in magnitude or direction between two points in space, a magnetic gradient is said to exist. The gradient (G) is defined as change in field (ΔB) divided by change in distance (Δs).

What is the purpose of the gradients?

The main function of gradients is to allow spatial encoding of the MRI signal, but are also critical for a wide range of physiologic techniques. Examples includes MR angiography, diffusion ad perfusion imaging.

What are the primary functions of spatially varying gradients in an MRI acquisition?

The primary function of gradients, therefore, is to allow spatial encoding of the MR signal. Gradients also are critical for a wide range of “physiologic” techniques, such as MR angiography, diffusion, and perfusion imaging.

How does gradient echo work?

The gradient echo is generated by the frequency-encode gradient, except that it is used twice in succession, and in opposite directions: it is used in reverse at first to enforce transverse dephasing of spinning protons and then right after, it is used as a readout gradient (like in spin-echo MRI) to re-align the …

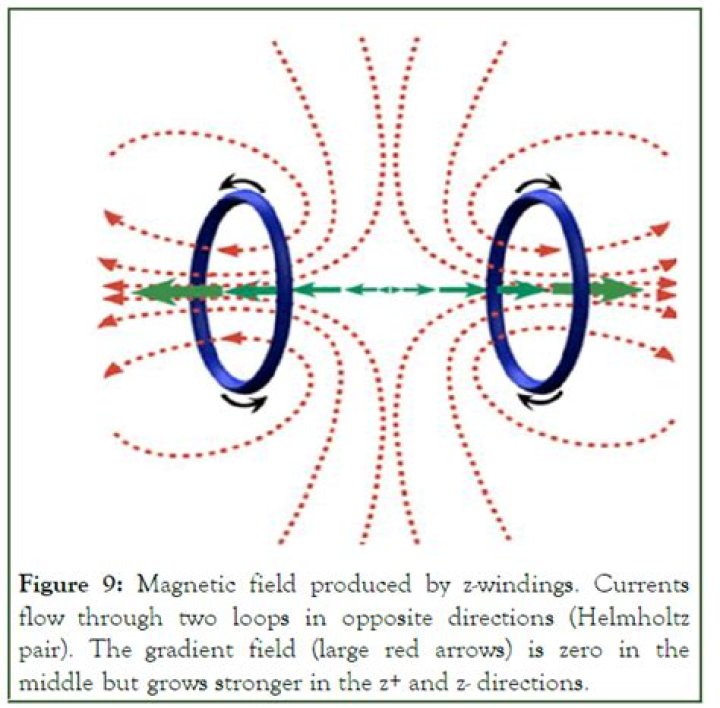

How are magnetic field gradients created?

By passing current through gradients created by coils of wire (gradient coils), the magnetic field strength is altered in a controlled and predictable way. Gradients add or subtract from the existing field in a linear fashion, so that the magnetic field strength at any point along the gradient is known.

How do you find the gradient of a magnetic field?

The force/gradient relationship is represented by the formula, F = – ∇ P. Force equation Where F is the force, ∇ is the gradient as a vector quantity and P is the magnetic potential.

What is the benefit of the gradient coil?

Gradient coils are used to produce deliberate variations in the main magnetic field (B0). There are three sets of gradient coils, one for each direction. The variation in the magnetic field permits localization of image slices as well as phase encoding and frequency encoding.

Where do you find frequent use of gradient?

Que.Where do you find frequent use of Gradient?b.MRI Imagingc.PET Scand.None of the mentionedAnswer:Industrial inspection

Article first time published on

How are gradients used to locate NMR signals in an imaging experiment?

A gradient is the linear variation of the magnetic field strength along a certain direction. Under a magnetic field gradient, the NMR frequency depends on the position. If we measure the spectrum of a sample under a gradient, the spectrum is a one-dimensional image, or profile, of the sample.

What happens in a gradient coil that determines the amplitude of a gradient?

The strength/amplitude of the gradient is determined by the amount of current applied to the gradient coil (maximum amplitude determines maximum achievable resolution). Polarity determines which end of the gradient is positive and which is negative.

How does the magnitude of a magnetic field vary with distance?

The strength of the magnetic field decreases with distance from the wire. (For an infinite length wire the strength is inversely proportional to the distance.)

What is the purpose of the radiofrequency transmit and receive coils in magnetic resonance imaging?

RF coils are the “antennas” of the MRI system and have two functions: first, to excite the magnetization by broadcasting the RF power (Tx‐Coil) and second to receive the signal from the excited spins (Rx‐Coil).

What is spatial field gradient?

The term “spatial gradient magnetic field” refers to the rate at which the static magnetic field strength changes over space or distance per unit of length.

How a high gradient magnetic field could affect cell life?

The magnetic gradient forces localized near the MNPs affect cell functions in two main ways: i) changing the resting membrane potential, as predicted by Eq. 1, and ii) generating local magnetic pressure that can cause membrane deformation, resulting in cell membrane blebbing.

Which gradient specification is generally the most important when assessing how well an MR system is capable of performing rapid high resolution imaging?

Which gradient specification is generally the most important when assessing how well an MR system is capable of performing rapid, high-resolution imaging? Peak gradient strength. Slew rate.

What is gradient echo images?

Gradient echo sequences (GRE) are an alternative technique to spin-echo sequences, differing from it in two principal points: utilization of gradient fields to generate transverse magnetization. flip angles of less than 90°

What is the primary advantage of gradient echo over spin echo imaging?

What is the primary advantage of gradient echo over spin echo imaging? Higher temporal resolution.

How does fast gradient echo imaging decrease the scan time?

The major purpose behind the GRE technique is a significant reduction in the scan time. Toward this end, small flip angles are employed, which, in turn, allow very short repetition time (TR) values, thus decreasing the scan time.

How do RF coils work?

Radiofrequency coils (RF coils) are the receivers, and sometimes also the transmitters, of radiofrequency (RF) signals in equipment used in magnetic resonance imaging (MRI). … The receiver coil picks up the oscillations at RF frequencies produced by precession of the magnetic moment of nuclei inside the subject.

When a nucleus placed in magnetic field the motion of the nucleus is?

When a magnetic nucleus is located in a strong magnetic field, it resonates. In effect, it becomes a tuned radio receiver and transmitter. The resonance occurs because the spinning nucleus precesses at a rate that is in the radio frequency range. The resonant frequency is determined by three factors.

What happens when a strong magnetic field is applied to hydrogen atoms?

The energy levels and wave functions are studied for a hydrogen atom in a very strong magnetic field. The contraction of the electronic-charge distribution in a plane perpendicular to the magnetic field results in an increase in ionization energy at high fields.

What is the value of gradient of a constant?

Explanation: Gradient of a function is zero implies slope is zero. When slope is zero, the function will be parallel to x-axis or y value is constant. 10.

What is the mathematical perception of gradient?

The mathematical perception of the gradient is said to be. Tangent.

What does the constant gradient imply?

If the gradient is constant, then the surface will be a plane, with the same uphill direction and slope everywhere. A good 3-dimensional example is the electrical potential between two parallel charged plates.

What is the role of magnet in NMR?

The role of the magnet is to polarize the nuclei to produce a net magnetization within the sample. For NMR spectroscopy and MRI, almost all magnets are superconducting. The magnetic field should be temporally stable and homogeneous to within parts-per-billion (ppb) throughout the sample.

What is magnetic resonance spectroscopy and its relationship to signal production?

Introduction. Magnetic resonance spectroscopy (MRS) is an analytical tool that detects radio frequency electromagnetic signals that are produced by the atomic nuclei within molecules. It can be used to obtain in situ concentration measures for certain chemicals in complex samples, such as the living brain.

What is the function of the magnet in NMR?

NMR uses a large magnet (Magnetic) to probe the intrinsic spin properties of atomic nuclei. Like all spectroscopies, NMR uses a component of electromagnetic radiation (radio frequency waves) to promote transitions between nuclear energy levels (Resonance).

What is gradient amplitude?

Sensitivity and peak amplitude The peak amplitude (G) is the strength of the gradient system, i.e. the steepness of the magnetic field. It is measured in mT/m. The gradient amplitude (in combination with the RF excitation pulse) defines the slice thickness.

What determines slice thickness in MRI?

The thickness of the slice is determined by a combination of two factors: (1) the strength, or steepness, of the gradient, and (2) the range of frequencies, or bandwidth, in the RF pulse. In most clinical applications, it is desirable to have a series of images (slices) covering a specific anatomical region.
