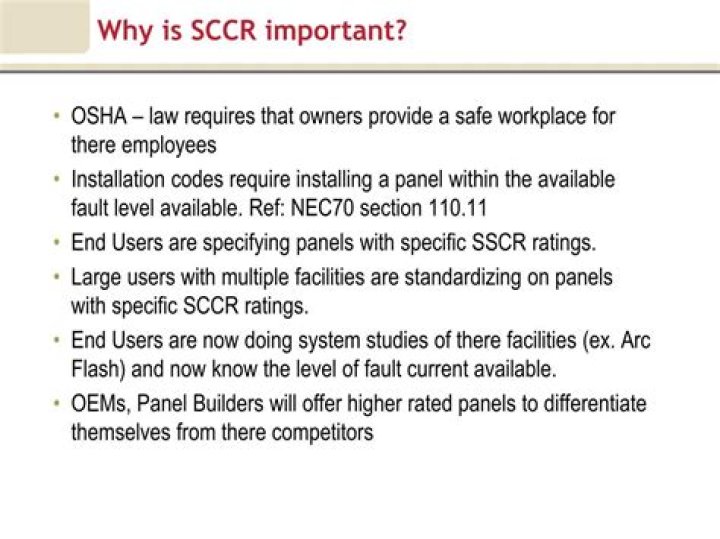

Why is SCCR important
By James Craig
Why Is SCCR Important? Because the SCCR represents the highest short-circuit fault current that equipment such as industrial control panels can safely withstand, exceeding the SCCR may cause catastrophic and violent equipment and component failure.
What does SCCR mean in electrical?
A short-circuit current rating (SCCR)1 is the maximum current a device or system can safely withstand for a specified time (such as 0.05 seconds), or until a specified fuse or circuit breaker opens and clears the circuit. SCCR is usually expressed in kiloamperes (kA).
What is the difference between AIC and SCCR?
Note: The difference between SCCR and AIC is that AIC applies to overcurrent protection devices only, and the SCCR applies to the entire assembled device, which may use as part of its assembly overcurrent protection devices with an AIC rating.
Which industrial control panels require SCCR?
In UL 508A, the UL Standard for Safety for Industrial Control Panels and the National Electrical Code (NEC®) the standard requires industrial control panels that contain power circuit components (supply main line power to loads such as motors, heating, lighting, appliances or receptacles) to be marked with an SCCR, …Are all power circuit components required to have an SCCR?
Answer: UL and NEC rules define which components in a control panel require a short circuit current rating. Control circuit devices, such as pilot lights, push buttons, etc,do not have an SCCR, nor are they required per the NEC or UL 508A.
Do Motors have SCCR?
SCCR applies to all electrical equipment, such as panelboards, switchboards, motor control centers and industrial control panels. … NEC requires industrial control panels that contain power circuit components to be marked with the equipment SCCR per 409.110 based on its listing and labeling or per an approved method.
What determines SCCR?
SCCR Compliance The SCCR for the control panel is determined the lowest SCCR value for any component or branch circuit. The available fault current must be determined at the customer facility where the electrical panel will be installed. This determination can be done by the manufacturer or the installation contractor.
Do transformers have an SCCR rating?
All power circuits are required to have a SCCR with the exception of Power Transformers and Reactors, because voltage does not flow thru without restriction (UL508A SB4. 2).How is SCCR tested?
The controllers passed two tests: Standard Fault, and High Fault. For the standard fault test, fuses are calibrated to have a let-through current of the peak let-through for the recommended fuse size. The high fault test uses the recommended fuse size: fast-acting, Class T fuses.
Do transformers have SCCR?There are two methods that you can use to determine the SCCR of the transformer. The transformer load-side components and protective devices need to be greater or equal to the calculated rating of the transformer in order to have the line-side interrupt rating of the primary overcurrent device be the SCCR.
Article first time published onHow can I improve my SCCR rating?
By using current-limiting circuit protection devices and carefully selecting other high withstand rated components, the final sCCr of the panel can be increased to a level acceptable to consulting engineers and inspectors.
What does Kaic rating mean?
KAIC is an acronym used by electricians. It stands for Kilo Ampere Interrupting Capacity and is sometimes referred to as Thousand Ampere Interrupting Capacity. … The fault current rating is determined by calculating the AIC (Ampere Interrupting Capacity) short-circuit rating of the electrical system.
What does 10kA mean?
10kA equals 10,000 amps.
How are AIC ratings calculated?
AIC ratings are measured using Amps RMS Symmetrical. For example, a device rated 10K AIC will interrupt current up to 10,000 Amps without shorting to ground or exposing live parts.
What is the voltage in an open circuit?
The open-circuit voltage, VOC, is the maximum voltage available from a solar cell, and this occurs at zero current. The open-circuit voltage corresponds to the amount of forward bias on the solar cell due to the bias of the solar cell junction with the light-generated current.
What is a ul508a control panel?
UL 508A is the UL standard for the construction of Industrial Control Panels. This document gives guidelines to panel builders on various issues including proper component selection, wiring methods and calculation of short circuit current ratings. … Upon successful inspection, the panel would bear the UL label.
What is short-circuit current in a solar cell?
The short-circuit current is the current through the solar cell when the voltage across the solar cell is zero (i.e., when the solar cell is short circuited). … The short-circuit current is due to the generation and collection of light-generated carriers.
What is open circuit condition?
An open circuit is defined as an electric circuit in which current does not flow. … But while current cannot flow through the circuit, there is some voltage drop between two points of a circuit. Hence in an open circuit, the current flowing through the circuit is zero, and voltage is present (non-zero).
What is a Type E combination motor controller used for?
Self-protected combination starters are often called “Coordinated protected starters” and “Type E” starters. They are intended to provide motor overload and motor branch circuit short-circuit and ground fault protection by combining a magnetic short-circuit trip and adjustable motor overload in one package.
What is a Type E motor controller?
Type E starter is a self-protected combination motor controller that combines in a single device all the required functions of a combination starter and eliminates any additional requirements for upstream fuses or circuit breakers.
What are the three UL industrial control panel labels?
Within UL product category NITW, there are three main product identities associated with industrial control panels, “Enclosed Industrial Control Panel,” “Open Industrial Control Panel” or “Industrial Control Panel Enclosure.” These specific product identities need to be considered by the Authority Having Jurisdiction ( …
Is short circuit suitable for kids?
Follow Number 5 in his zany escapades in Short Circuit, a fantastic family film that will be the perfect gift for kids of all ages. It was a real treat for us to review this film. … Admitedly the film looks a bit old-fashioned – it’s 30 years old – but 3 decades has not changed the fact that it is funny!
What are the standard AIC ratings for panels?
Minimum AIC ratings for the panel should be 10,000 AIC for 120/208 volt panels, and 14,000 AIC for 277/480 panelboards.
Do power supplies have SCCR rating?
Power supplies are a type of power transformer and therefore do not require an SCCR rating.
What is peak let through current?
Peak Let-through Current (See Figure 14) – The maximum instantaneous current that passes through an overcurrent protective device during its total clearing time when the available current is within its current-limiting range.
What is the minimum voltage rating of branch circuit fuses?
NEC 240.60(C) states that the minimum interrupting rating of branch-circuit cartridge fuses is 10,000 A.
How can you reduce fault current?
1. Use of reactors. Reactors can be installed anywhere in the distribution circuit in order to limit the fault current. Since they are essentially a linear inductive reactance, their impedance will add arithmetically to the system impedance and result in a reduction of the fault currents.
How many amps can a 30 amp breaker handle?
Keep loads within the safe maximum for each breaker. The safe maximum calculation is 80%. If breaker is rated 30 amp, then 30 x . 8 = 24 amp safe maximum.
What is ampere frame?
Ampere Frame [AF] it is the rating breaker current [maximum. current which the breaker will withstand for a long. time].Ampere trip [AT] it is the current set to trip the. circuit [usually from 60% up to 100% of the AF].
Why short circuit analysis is done?
“Short Circuit analysis is required to ensure that existing and new equipment ratings are adequate to withstand the available short circuit current at each point in the electrical power systems.” … Short circuit study is used to determine the available fault current or short circuit current at each point in the system.
How many amp is 10kA?
“10KA” means 10,000 amps.
