Will Eaton breaker fit Cutler Hammer

Cutler-Hammer and the Eaton family of products are the same and compatible. Parts number have not changed, just the Eaton name has been placed on the product.

What breaker is interchangeable with Cutler-Hammer?

While you now know that Eaton breakers, Westinghouse breakers, Square D breakers, and Cutler-Hammer breakers are largely compatible, you still need to find the exact models you need for your facility.

What are Eaton breakers compatible with?

Eaton’s UL classified breakers are designed and tested to be both mechanically and electrically interchangeable with circuit breakers manufactured by General Electric, Thomas & Betts, ITE/Siemens, Murray, Crouse-Hinds, and Square D.

Is Eaton and Cutler-Hammer the same?

The Cutler-Hammer name and logo remain registered trademarks of Eaton Corporation. … It’s the power of uniting some of the world’s most respected names brought together as One Eaton, to build a single brand you can trust to meet every power management need.

Will a Square D breaker fit in a Cutler-Hammer panel?

Both of the breakers were able to fit. If the model number is listed by the box, it’s acceptable.

Are Murray and Cutler Hammer breakers interchangeable?

Lastly, Cutler-Hammer Circuit Breakers are known for their capability to control current for a long time. They are physically interchangeable with Murray and other brands, but remember to check your local code to see if it’s legal to install.

What breakers are interchangeable?

Specified breakers are breakers that have been tested and listed for a panel by the manufacturer. Interchangeable breakers are breakers that have been tested in the panels that they are approved for and are similar to specified breakers, typically by a third party such as Underwriter’s Laboratory (UL).

Who makes Cutler Hammer Circuit Breakers?

Cutler Hammer breakers are produced by Eaton Corporation, a global technology leader that purchased Cutler-Hammer Incorporated in1978.

What does BR breaker mean?

BR breakers are 1″ in Width. BR breakers are black, with black handles (In most cases. Some older styles have multicolored handles.)

What is the difference between Eaton Br and Cl breakers?

The Eaton CL line includes some neat breakers that don’t really exist natively, such as their remote control breakers, and AFCI or GFCI for the obsolete panels they fit. The Eaton BR line is actually UL-listed as dual Type BR and C, meaning it is natively listed (not classified) for Challenger panels.

Article first time published on

Can I put a GE breaker in an Eaton panel?

TLDR: They’re all wrong. Swap with a GE or classified breaker (e.g. Eaton CL not BR).

Are circuit breaker brands interchangeable?

The circuit load will determine the breaker size you need – and you’ll need to make sure to get the right brand, as all breakers are not interchangeable. … Brand: Always install the correct brand of breakers in your breaker panel. While some breakers are interchangeable, many are not, even if they look the same.

Where are Eaton breakers made?

Loadcenters, multiple metering, and meter breakers are manufactured in Lincoln, IL. Safety Switches and rotary disconnects are manufactured in Cleveland, TN. Low-voltage dry type transformers are manufactured in Juarez, Mexico.

What breakers are compatible with Square D QO?

Square D QO breakers are compatible with QO breaker boxes and CSEDs. Each ANSI-certified and UL-listed. Homeline circuit breakers are built with the same Square D brand quality you have come to expect at a price that makes them the best value in their class.

Can I replace a circuit breaker myself?

You can replace the circuit breaker by just removing the panel cover. Once you have removed the cover then you can disconnect the wire from the faulty breaker and pull it out of the way. … Take note of how the breaker fits in the panel and locks into position so that you can put the new circuit breaker in correctly.

How do I choose a circuit breaker size?

I = P / V.
I = 2000W / 120V.
I = 16.66 A.

Are tandem breakers legal?

Tandem breakers are safe and legal to use only when the panel is designed for them and only in the slots that accept tandem breakers. Look at the manufacturer’s labeling on the inside face of the panel door.

Can I use Murray breakers in a Siemens panel?

Siemens and Murray are indeed the same company. The parts are physically interchangeable (and AFAICT, identical except the label), but Murray breakers are technically not certified for the Siemens panels, and thus not allowed by NEC code. … Siemens purchased Murray a few years ago.

Are Square D and Murray breakers compatible?

Square D Circuit Breakers: Square D breakers work on the same principles as their Murray equivalents. The advantages of Square D breakers include a very robust design and easy installation. Square D circuit breakers function reliably and are very safe.

What is Eaton Type BR?

Eaton’s BR Circuit Breakers are used in load centers, panelboards, or similar devices. They are made for a wide range of applications and include: BR 1″ circuit breakers and accessories for BR-style load centers; FIRE-GUARD arc fault circuit interrupters (AFCI); and ground fault circuit interrupters (GFCI).

Are CH and CHF breakers interchangeable?

They are not interchangeable.

What breakers replace Thomas and Betts?

This handy chart seems to show that the Eaton CL230 breaker is a “Classified” replacement for the Thomas Betts TB230 breaker. Since this is a pretty common breaker sold at national big box home improvement stores it should be straightforward to compare the two.

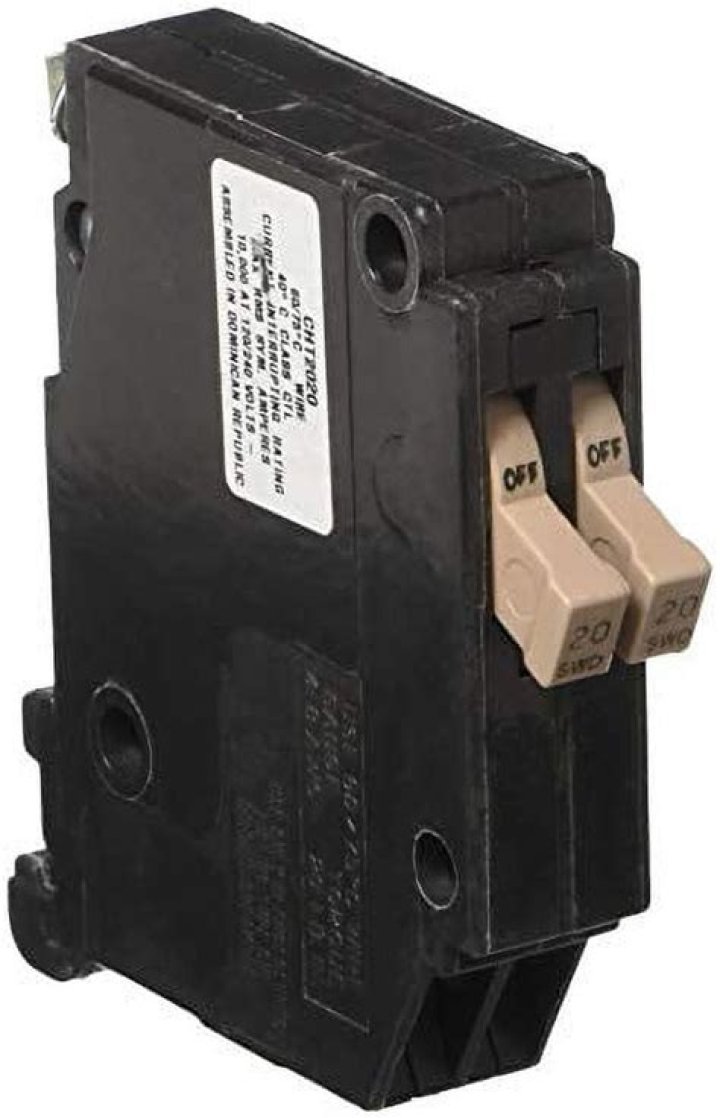

What does type CH mean on a breaker?

Eaton’s residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off.

What happens if you put in the wrong breaker?

If you frequently go to switch on a light or plug in an appliance and nothing happens, you may be using the wrong circuit breaker amperage. Yes, you can push the reset button on your current circuit breaker and continue about your business. Unlucky, it will happen again.

How many Eaton plants are there?

FY, 2018Q3, 2020Countries Covered175175Countries (Offices)5961Countries (Manufacturing Sites)42Manufacturing Locations284

Do Eaton breakers have a lifetime warranty?

Lifetime warranty on all CH load centers and circuit breakers. One-piece silver flash plated copper bus provides superior conductivity throughout the entire product line. Plug-on neutral design provides time and labor-savings by eliminating the pigtail.

How long do Eaton Breakers last?

According to the Consumer Product Safety Commission (CPSC), the lifespan of electrical breakers is typically between 30-40 years. Electricity issues such poor power ratings or fluctuating voltages are all factors that will affect how long your circuit breaker lasts.

What is the difference between Square D Homeline and QO?

Homeline is the “price competitive” model from SquareD, QO is the higher quality panel. The difference is probably mostly due to historical reasons given all the consolidations in the electrical manufacturing industry.
