Are water heater thermocouples interchangeable

From an operational perspective the thermocouples for a water heater are all pretty much the same. However, there are two variables, the length and the fittings used to install them, see below. A failing thermocouple will not send the correct electrical impulse and the gas valve will not release any gas.

Are thermocouples universal?

Honeywell, White Rodgers, and other manufacturers make universal replacement thermocouples, usually with a 30-millivolts (mV) rating for standing-pilot furnaces. … Electronic flame sensors are much less universal, and you must find the exact part specified for your furnace model.

What size thermocouple do I need?

Universal thermocouples come in lengths from 15 to 36 inches. An 18 or 24 inch will suffice for all residential water heaters using universal kits. Almost all older waters heaters and many of the newer style units with a sealed burner compartment and a viewing window will use this thermocouple.

Are thermocouples interchangeable?

Commercial thermocouples are interchangeable, economical, and supplied with standard connectors. Unlike most other temperature measurement devices, external form of excitation is not required for thermocouples because they are self-powered.

How do you know if your water heater thermocouple is bad?

A worn out thermocouple is one of the most common gas water heater problems. When thermocouples wear out, the pilot light goes out, the burner won’t light, and you will have no hot water.

What is the difference between J type and K type thermocouples?

Whereas a J Type Thermocouple is made up of iron and constantan, K type Thermocouples are composed of a nickel/chromium alloy (chrome) and a nickel/aluminium alloy (alumel) which gives them much better protection against oxidation and acidity than the iron limbs of the Type J.

Are most thermocouples interchangeable?

Watch out: thermopiles and thermocouples are not interchangeable. When replacing a temperature sensing device like a thermocouple or thermopile, you should be sure to purchase the proper part.

How do I choose a thermocouple?

Determine the application where you will use the thermocouple sensor. …
Determine the temperature ranges the probe will be exposed to. …
Determine how important a fast response time is. …
Consider any chemical, abrasion or vibration resistance. …
Consider any installation requirements.

Are Thermopiles universal?

Product Overview It’s easy to install and designed for use with your gas- and propane-fueled appliances. It features a universal fit that can conveniently replace Honeywell, Robertshaw, Jade, and General Controls cartridges.

Can I replace a thermocouple myself?

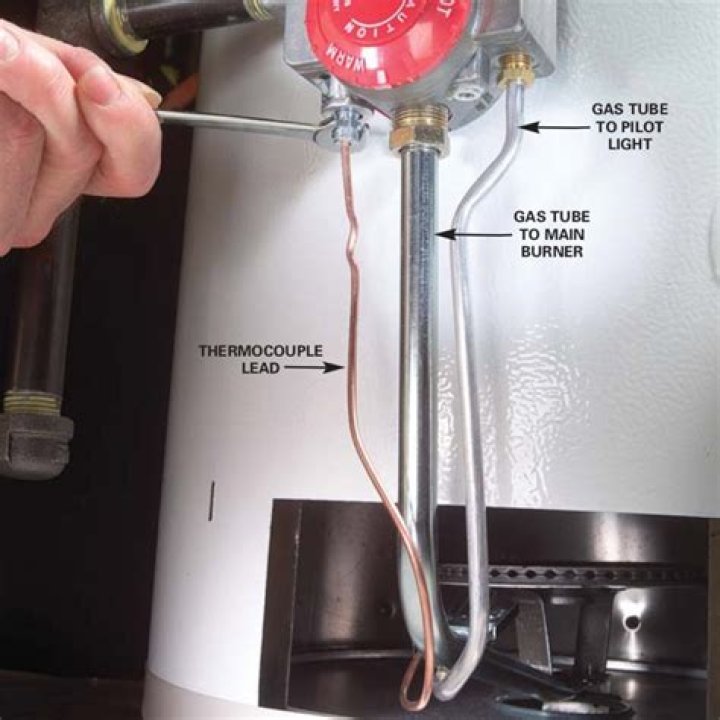

The No. 1 cause of pilot lights that won’t stay lit is a worn-out thermocouple. It’s easy to replace and a new one costs $5 to $10. Rather than trying to unfasten the thermocouple inside the water heater’s burning chamber, it’s easier to remove the whole burner and thermocouple assembly.

Article first time published on

Will pilot stay lit if thermocouple is bad?

The job of the thermocouple is to keep the pilot lit. It does this by sending a tiny electric current to a sensor on the gas valve signaling the valve to stay open. … Nothing lasts forever, and when the thermocouple wears out, the pilot won’t stay lit and your appliance won’t work.

Do Thermopiles go bad?

Like the other component parts in your furnace, the thermocouple can wear down over time, producing lower voltage than it should when heated. And the worst part is that you can have a bad thermocouple without even knowing. Therefore, inspecting and testing your thermocouple should be part of your furnace maintenance.

How long should a water heater thermocouple last?

Thermocouples can last up to 10 years if properly installed and maintained, while furnaces can last 15-20 years, although either may wear out sooner in multifamily units.

Are J and K thermocouples interchangeable?

Types of Thermocouple. Type J Thermocouple: The type J is also very common. It has a smaller temperature range and a shorter lifespan at higher temperatures than the Type K. It is equivalent to the Type K in terms of expense and reliability.

Which type of thermocouple is best?

Type N – Nicrosil-Nisil: This thermocouple has very good thermoelectric stability, which is superior to other base metal thermocouples and has excellent resistance to high temperature oxidation. The Nicrosil-Nisil thermocouple is ideally suited for accurate measurements in air up to 1200°C.

Why do thermocouples go bad?

Soot buildup on the thermocouple may block the flame. Under constant exposure to a hot flame, a thermocouple wears down over time. Even a slight residue can make the thermocouple malfunction.

How much does it cost to replace a thermocouple on a water heater?

The cost to replace the thermocouple on a water heater is $100 to $325. The thermocouple detects whether the pilot light is lit and signals the gas control valve to turn on the gas flow. Thermocouple replacement is the most common repair needed for gas tank water heaters.

Can you clean a thermocouple?

Yes, you can clean a thermocouple, but the task must be done with a light touch. Remove the thermocouple from the process assembly, using a steel wool or emery cloth, lightly clean the tip removing any build up.

What are the different types of thermocouples?

B-Type Thermocouple. The alloy combination is of Platinum (6% Rhodium) and Platinum (30% Rhodium). …
E-Type Thermocouple. …
J-Type Thermocouple. …
K-Type Thermocouple. …
N-Type Thermocouple. …
R-Type Thermocouple. …
S-Type Thermocouple. …
T-Type Thermocouple.

Do thermocouples need to be calibrated?

Thermocouples are a common type of temperature measurement device that is often more practical than a thermometer for temperature assessment. … As a result, thermocouples need to be calibrated to produce interpretable measurement information.

Where are K-type thermocouples used?

K-type thermocouples are found in use for many industries such as water, chemical and gas, and food industries. They are one of the more inexpensive thermocouples with good resistance to oxidization, god linearity of measurement, and stability.

What type thermocouple is red and white?

TypeUnited States ANSI 96.1Japan JIS C1610-1981EPurple + Purple – RedPurple + Red – WhiteJBlack + White – RedYellow + Red – WhiteKYellow + Yellow – RedBlue + Red – WhiteNOrange + Orange – Red-

Why do RTDs have 3 wires?

To compensate for lead wire resistance, 3 wire RTDs have a third wire that provides a measurement of the resistance of the lead wire and subtracts this resistance from the read value. … Because 3 wire RTDs are so effective and affordable, they have become the industry standard.

What do thermocouples do?

A thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature.

What does thermopile low voltage mean?

So, this is what the thermopile voltage low error means. The error means the thermocouples in the collection cannot generate enough current to power the control panel that we mentioned. If this happens, the controller system will stop working, and you will see an error message on the water heater.

How does a thermopile work?

Thermopile works on the thermoelectric effect principle. … A voltage is generated in a thermopile when its dissimilar metals (thermocouples) are exposed to temperature differences. Adding more pairs of thermocouples in series to form a thermopile, it increases the voltage output.

What is the most common thermocouple type?

Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It’s inexpensive, accurate, reliable, and has a wide temperature range.

Do newer water heaters have a thermocouple?

Not all gas water heaters have a thermocouple. Some newer models have an advanced temperature control system. Essentially, it is a microprocessor that constantly monitors and controls burner operation and maintains consistent and accurate water temperature levels. The flashing LED indicates that the pilot is on.

Why does the pilot on my water heater keep going out?

The most common reason that your pilot light on your water heater keeps going out is a damaged, bent or dirty thermocouple.

How do you clean a thermocouple on a water heater?

Clean the thermocouple – using the emery cloth sandpaper, sand the ends of the thermocouple and then give it a finishing touch with the lint-free cloth. Hopefully, you can get to the ends of the thermocouple without having to detach it from the assembly, but you may have to do that.

How do I know if my water heater is FVIR?

How can I tell if my water heater is FVIR? Each manufacturer will have its own particular label for indicating if the model is FVIR.
