How do I attach a ring doorbell to an existing wire

Note: If wiring your Ring Doorbell 2 to an existing doorbell, a transformer with a voltage of 8-24 VAC is required. If wiring directly into a transformer, a resistor must be used. Insert the battery into the bottom of your Ring Doorbell 2 until it clicks into place. … DC transformers and most intercoms are not supported.

Does ring doorbell connect to existing wiring?

Note: If wiring your Ring Doorbell 2 to an existing doorbell, a transformer with a voltage of 8-24 VAC is required. If wiring directly into a transformer, a resistor must be used. Insert the battery into the bottom of your Ring Doorbell 2 until it clicks into place. … DC transformers and most intercoms are not supported.

How do you install a ring doorbell 2 without wires?

Click the level tool (included in the box) into the small hole on the front of the Ring Doorbell 2 below the camera. Place the Ring Doorbell 2 next to your door at about chest height (4 feet). Level the device using the level tool. Mark the positions for mounting holes with a pencil.

Which wire gauge does Ring recommend when hardwiring a doorbell?

18-gauge wire is the ideal gauge to use with Ring Video Doorbells. It provides the proper amount of resistance and is very easy to work with and makes wiring simple. To determine whether or not the wire you’re using is 18-gauge, get a standard metal thumbtack and compare the pin to the wire.

How do I get my ring doorbell to ring in my house?

The Ring Chime is a plug in accessory that can be used to hear your doorbell inside your home. The Ring Chime Pro is a combination wifi extender and internal chime. Both the Chime and Chime Pro will need to be set up in your Ring app and you’ll be able to connect either one to your doorbell.

How do you install a ring doorbell without screws?

The No-Drill Mount uses double-sided adhesive to attach the plate to your wall. Your doorbell can then be securely screwed into the mounting plate. Note: Be sure to install the No-Drill Mount first and make sure it’s firmly attached before installing the doorbell.

Is ring doorbell 2 the same as 2nd generation?

1. Yes, there is a difference, 2nd gen has removable battery pack. … The other ring model, second generation, has a removable battery pack. So, the ring doorbell doesn’t have to be removed completely, only the battery pack.

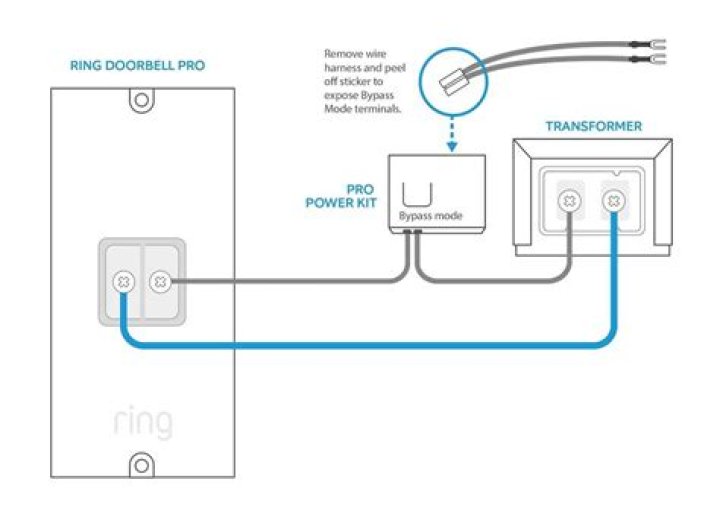

Is the Ring Pro Power Kit necessary?

If using the Ring Pro as a stand alone device on a transfomer you can use the Pro Power Kit but its not required. If you choose not to use the Power Kit best bet is to call Ring and ask them to send you the Pro Power cable. This is a inline fuse designed to protect the Ring Pro from momentary shorts.

Does Ring Pro come with power kit?

Now, Ring Video Doorbell Pro comes with a Pro Power Kit v2. The advantage of the Pro Power Kit is a resettable fuse, which means you can simply turn the power off and back on again in the event of a power trip or malfunction.

Where is the breaker switch on a doorbell?

Trace the doorbell’s wire path. …
Step 1: Find the chime. …
Step 2: Find the transformer. …
Step 3: Find the circuit breaker.

Article first time published on

Where do doorbell wires go?

Terminals: Located on the central hub of a doorbell chime, the doorbell terminals are where the wires from the doorbell push button(s) and transformer connect to the chime. Typically, doorbell chimes have three terminals, labeled “rear,” “trans,” and “front,” that correspond with each connection.

What size wire is needed for a doorbell?

Doorbells are typically wired with 18 gauge wire, also referred to as “bell” wire. Terminals on the buzzer/bell are commonly labeled “F”, “R”, and “C”.

What size transformer does a ring doorbell require?

Both Ring Video Doorbell Pro and Ring Video Doorbell Pro 2 require a doorbell transformer rated at 16-24 VAC 50 or 60 HZ, 10-40 VA.

How many volts can doorbell handle?

Doorbells operate on very low voltage. Older models typically require just 8 to 20 volts of electricity — most often 16 volts — while newer models take 24 volts of electricity. Newer models have higher voltage output to accommodate longer runs of wire in larger homes.

Can I install a ring doorbell without an existing doorbell?

So can you really install a ring doorbell without an existing doorbell? A Ring doorbell can be installed even if you don’t have a doorbell by using a plug-in transformer. To install, connect the doorbell wires with the transformer wires and plug them into a nearby wall outlet.

Does Ring Doorbell record inside house?

Ring Indoor Cam is a smaller next-generation security camera specifically designed to be used indoors to bolster the security around your home. The Ring Indoor Cam features 1080p full HD resolution, two-way audio, HD video recording, and a wide viewing angle.

Does Ring Doorbell work with old chime?

A wired Ring Doorbell will work with your old chime if the chime is AC-powered. The wired connection must also yield between eight and 24 volts to work. If your chime is DC-powered, it will not be compatible with your Ring Doorbell.

Can ring doorbell 2020 be hardwired?

Hardwired or battery-powered — your choice. If your current doorbell operates at a voltage between 8 and 24 volts AC, you can connect this second-generation Ring Video Doorbell to the existing wiring. … No doorbell at all?

Does Ring 2 come with battery?

Ring provides one battery in the box, but you can buy spares from Ring’s website for a reasonable $20. Ring says the battery should last anywhere from six to 12 months between charges, depending on how much activity your doorbell receives.

What is the difference between ring doorbell 1 and 2?

The largest difference between the two is their video resolution. Ring 2 boasts a 1080p HD resolution while Ring 1 is at 720p HD. Both are battery powered, however, the Ring 2’s battery allows for easier removal and replacement.

How do you keep a ring doorbell from being stolen?

Make sure your Ring Doorbell is attached as securely to your door frame or if possible, the wall. …
Get a cover box or metal locking plate that can also be secured to the wall or door frame, just make sure that the camera won’t be covered.
Have a backup camera.

Can ring doorbell be stolen?

Ring has a theft procedure and policy in place that will help you get a free replacement Ring device as quickly as possible after your Ring device has been stolen. The remainder of this article contains the steps you should follow. Immediately report the theft to the police.

Does ring doorbell pro have to be hardwired?

The Ring Video Doorbell Pro must have a wired connection. That’s because the detection system is processing video all the times—a battery would soon be dead. You’ll need to connect the Pro to a doorbell transformer that supplies 16- to 24 volts of AC power.

When installing the Pro Power Kit which wire terminals should be used?

Disconnect your doorbell’s “Transformer” wire.
Use the wire clips to connect the “Transformer” wire to the white wire on the Wire Harness.
Connect the blue end of the white wire to the “Transformer” terminal on your bell.

What power supply do I need for ring doorbell?

The Ring Doorbell Pro requires a constant power supply with a voltage between 16V-24V and at least 30VA of amperage. Our smart home pros have found that in the midwest only about 20% of homes built before 1995 have enough voltage to supply a Ring Doorbell Pro.

Will doorbell still ring if breaker is off?

Doorbells have several electrical components that allow them to work. From the button to the chime to the transformer, all of these need to be connected and working for the doorbell to sound. Removing or disconnecting any of these pieces will effectively disable any doorbell.

Do you need to shut off power to change doorbell?

If you are changing to a wireless doorbell, you won’t need to use the doorbell transformer. You can disconnect it yourself or have a qualified electrician disconnect it for you. The transformer may be inside a junction box behind the chime unit or near other electrical components in the basement or attic.

Do doorbells have fuses?

Although doorbells don‘t emit much voltage, the transformer is connected to a 120-volt wire in the house. Turn off the power before you start working on the doorbell. When the bell doesn’t ring, look at the circuit breaker or fuse box. … Check the wires behind the button, in the junction box, and on the transformer.

Is it safe to touch doorbell wires?

Because of its low voltage, doorbell components and wiring are safe to handle, even when electricity is flowing through them. … Without touching the wires, immediately shut off the power to the doorbell, as described below.

Can you wire a doorbell to a light switch?

Remove the light switch box, place a larger 2 gang box in, split the line, 1 line to switch, 1 line to a store bought doorbell kit that mounts to the wall beside the switch, wire that to the ring as now you have the right voltage output from its transformer.
