How do you fit fiber cement slates

Answer Not Found

How long do fibre cement slates last?

How Long Do They Last? The longevity of fibre cement slates will be similar to tiles that are made of cement. You can expect a guarantee of 30 years from the manufacturer but in many cases, they will last at least twice as long, up to 60 years.

Can you walk on fibre cement roof?

Fibre cement roof sheets are generally quite fragile. For this reason, it is important to always use crawling boards or walkways and roof ladders.

What is a fibre cement slate?

Eternit Garsdale Double Slate – 600 x 600mm Manmade slates are produced from fibre-cement and offer a light weight, economical alternative to traditional natural roofing covering. … A number of fibre-cement slates can now be laid to as low as 15° to overcome the problems encountered with low pitch extensions.

Is fibre cement roofing any good?

One of the biggest advantages of fibre cement is that it is a durable material that is very resistant to the elements even as it ages. The internal makeup of fibre cement is resistant to salt and moisture making it an ideal roofing material in waterfront properties.

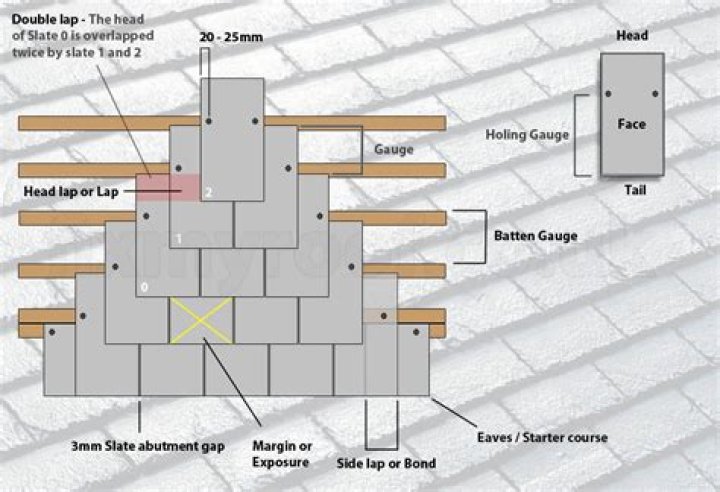

How much should roof slates overlap?

On a slate roof this is the critical overlap and is necessary to prevent water penetration and leakage. The roof pitch typically relates to the required head lap as follows: 20 degrees: 115 mm minimum head lap. 25 degrees: 85 mm.

What kind of nails fix slates?

Copper nails are most commonly used to fix slates on pitched roofs, but can also be used to secure roofing tiles in place. Copper is also used to create slate straps, which are used on slate roofs to hold broken slates in place, either as a temporary fix or a more long term solution.

How is a slate roof attached?

Slide the slate to a point where the bottom of the slate is flush to the bottom of the slates on either side. Once positioned, you will attach the slate using copper roofing nails. Place the first nail between the two slates directly above the repair slate.

What is a Sarking board?

Sarking boards are softwood boards, generally about 150 mm wide, that are attached to the rafters of a pitched roof to give extra strength to the overall structure of a building. … Firstly, sarking boards are typically used on buildings that are exposed to extreme weather conditions, such as high wind or torrential rain.

What pitch can slate go down to?

Natural Slate: The general recommendation for the minimum pitch for natural slate is 25°. There are some manufacturers that can go slightly lower, such as the SIGA 56M Natural slate, which can go down to 20° in some instances if used with slate hook systems.

Article first time published on

Is Fibre cement water resistant?

Fibre cement cladding is water-resistant in that is not affected by exposure to water and won’t disintegrate. Fibre cement cladding can be made waterproof with the application of a liquid or membrane waterproofing treatment.

What is the best slate for roofing?

Welsh slate is considered by many as the best natural slate in the world. Welsh slate is available in either heather (purple) or blue-grey. Penrhyn slate has a beautiful soft blue/purple appearance and can be expected to last more than 100 years.

What are Fibre cement slates made of?

Cedral slates are made of fibre cement. This composite material is composed of ingredients that are readily available in nature and that are low in toxicity. The main components are cement (made from limestone and clay rock), sand, air and water – mixed with fibres for extra strength.

How often do slate roofs need to be replaced?

The longevity of slate is key to its value in the eyes of homeowners. After all, roofing can be expensive. Slate is one of the few roofing options that doesn’t need to be replaced within the span of a lifetime. In most environments, slate shingles will last at least 125 years and sometimes as long as 200 years.

How much does a fibre cement slate weigh?

Fibre cement slate, however, is machine made in more finely controlled conditions, and is produced to a nominal thickness of 4mm. Marley Eternit fibre cement slates weigh 20.4kg/m² when installed with a 100mm lap or 20.9kg/m² with a 110mm lap.

What is the batten gauge for Eternit slates?

In most cases, irrespective of rafter spacings, 50 x 25mm battens should be used for our standard preholed fibre cement slates. Where BS 5534 suggests 38 x 25mm battens are acceptable, the slates should only be laid with 100 or 110mm lap.

How do you attach Hardie board?

Fiber cement siding can be nailed by hand or with a pneumatic nailer. It can also be attached using corrosion resistant screws. Use hot-dipped galvanized or stainless steel nails. Nails should penetrate through the sheathing and at least 1” into studs.

Can you cut cement board with a utility knife?

A carbide-tipped scoring knife is recommended, but you can also use a utility knife or shears. Never use a high-speed grinder to cut cement board indoors, since this can create a dust hazard.

What is fibre cement used for?

It can be used to cover the exterior of a house and also as a substitute for timber fascias and barge boards in areas that are subject to high fire danger. As well as cladding, fibre cement is also commonly used as a tile underlay on decks and in bathrooms and also for soffit/eave linings.

Can you use Aluminium nails on slates?

Nailing Natural Slates Nails should be copper (to BS 1202 part 2) or aluminium (to BS 1202 part 3). … The nail head diameter should be at least 10mm to comply with BS 5534 to minimise the risk of the nail head pulling through the slate. A 10mm head is only possible where the nail shank is 3mm diameter or greater.

Why do you use copper nails for slates?

Copper Clout Nails have been used for many years because of their malleability, which can assist in the fixing of the slate but also, and more importantly, their durability and resistance to corrosion. Copper nails last much longer than Hot Dipped Galvanised Steel nails, up to 10 times longer.

Can I use Galvanised nails on slate?

Two things generally fail: the nails or the slates. Galvanised steel nails tend to rust. The quality of galvanisation in the past has varied. Some very old galvanisation was extremely good.

Should ridge tiles be cemented on?

Mortar Bonded Ridge Tiles The ridge tiles should seal the top of the roof and overlap onto the slates/tiles on each side by at least 75mm. for slate and flat faced tiles this is achieved by using a fairly stiff 1:3 (cement: sharp sand) mortar bed along the tops of the tiles/slates.

What is head lap?

headlap (plural headlaps) The length of overlap between overlapping roof tiles.

What pitch is required for slate roof?

Conventional low pitch slate roofs are recommended down to a minimum of 20° in areas of sheltered or moderate exposure, providing a 500x300mm slate is used and a headlap of 115mm. Higher exposure or different sized slates necessitated a greater roof pitch of 22.5° or more.

Which on a domestic house is sarking used?

Sarking boards are typically softwood boards that are attached to the rafters of a pitched roof, below the roof-covering. They are typically around 150 mm wide and are used to provide additional support and strength to the overall structure.

How much does it cost to install sarking?

How Much Does Roof Sarking Cost? The cost depends on the type of roof sarking you buy, how heavy duty it is and what the thermal rating is. Costs typically range from $2 to $3 per square metre (p/m2). A 60 x 1.35 metre roll will typically cost between $180 to $300.

Is sarking waterproof?

Roof sarking is a thin pliable sheet with an aluminium foil lining that sits underneath the tiles of a roof. It’s hardy and waterproof, and creates an additional protective layer of insulation for the roof, by reflecting up to 97% of radiant heat from the sun.

Can you hammer a nail through slate?

Hammer drilling has the advantage of providing a countersink area for the nail head. Be aware, however, that, depending on the type of slate and the amount of pressure applied during drilling, hammer drilling can cause a bit too much blowout, thereby weakening the nailing area.
