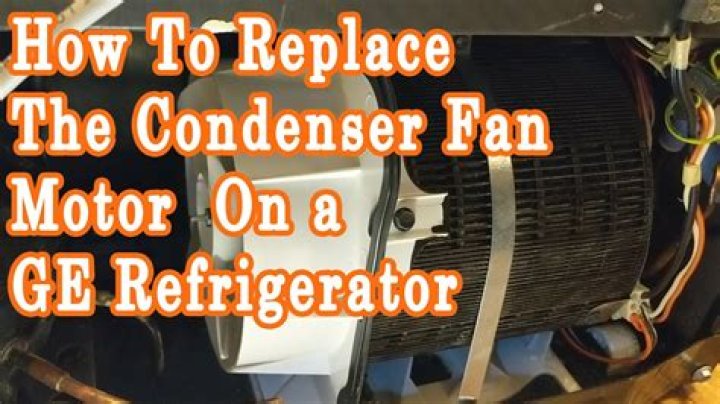

How do you replace a condenser fan on a GE refrigerator

The condenser is located behind the lower back panel of the fridge. Simply remove the screws that are securing this panel and set it aside.

Where is the condenser fan located on a GE refrigerator?

The condenser is located behind the lower back panel of the fridge. Simply remove the screws that are securing this panel and set it aside.

What causes a GE refrigerator to stop cooling?

One of the most common causes of a GE refrigerator not cooling properly is a problem with the self-defrosting functions, according to the Appliance Repair It website. … The parts likely to cause the problem are the defrost thermostat, defrost heater or the thermistor located above the coils.

What happens when refrigerator condenser fan fails?

If your condenser fan stops, the temperature of the refrigerant will rise and the compressor may overheat. … The fan runs whenever the compressor runs, and it draws cool room air through the front grille, and circulates it through the condenser coils, over the compressor, and back out the front grille into the room.

How do I know if my condenser fan is bad?

The fan won’t start even though the AC is on.
The fan won’t stop, even when you shut the AC off.
The fan turns on, yet the blades are rotating very slowly.
There’s a rattling noise coming from the condenser unit when the fan is turned on.

How do I know if my evaporator fan motor is bad?

Listen for a squeal or chirp sound. If the evaporator fan motor is going bad, it may still run while making a high pitched sound that may come and go. If you hear that sort of sound, something may be caught in the fan blades or the motor may be dying.

How much does it cost to replace a refrigerator fan?

PartReplacement Cost (Labor Included)Fan$120 – $150Evaporator Coil$200 – $300Ice Maker$350 – $500Fridge Door$500 – $700

What is the difference between an evaporator fan and a condenser fan?

The evaporator coil contains a refrigerant that will absorb heat from the air within the refrigerator. … The condenser coil is where the refrigerant passes through to remove this heat, and then the whole process continues again.

Where is the evaporator fan on a GE side by side?

This evaporator fan motor is located in the back of the freezer. This part circulates air over the refrigerator coils. These coils will convert the heat into cool air, which is then circulated throughout your appliance.

How do I know if my fridge fan is working?

Open the freezer and depress the light switch on the door. Listen to your refrigerator; there is a fan located at the back of freezer which circulates air throughout the freezer. Make sure this fan is audible. Check the fan at five-minute intervals; it does not run during cooling cycles.

Article first time published on

What does a bad condenser fan sound like?

There’s a rattling or buzzing noise coming from the condenser unit when the fan is turned on. … If you hear a loud rattling noise, it could be a minor issue like loose stones or debris that’s caught in the condensing unit.

What does a bad condenser fan cause?

When the condenser overheats, all of the components of the AC system will begin to overheat until they eventually get hot enough to burn and emit an odor. … A failed fan will not only fail to produce cold air, but can even result in damage to the AC system due to overheating.

When should the condenser fan come on?

Normally the condenser fan motor should be running when the compressor is running. Power ( 115 volts AC ) to the motor and it is not running is a bad fan motor.

Is a refrigerator fan supposed to run constantly?

Air Flow. The condenser in a refrigerator is a motor, and like the one in your car it needs constant airflow to remain cool enough for the working parts to remain in working condition. … This forces the condenser fan to work continually to try and disperse the heat.

Is it worth repairing a 10 year old refrigerator?

But, as a good rule of thumb, if you have multiple faulty parts or if your refrigerator is over ten years old, it is probably time to replace it. Consumer Reports recommends replacing your refrigerator if the cost to repair it is more than half the price of buying a new one.

Where is the evaporator fan motor?

Evaporator fan motors are normally located at the back of the freezer or refrigerator compartment behind one or more panels. You will usually need to remove all of the shelving and drawers to access a rear panel.
