How does g1000 AHRS work

An AHRS uses tiny sensors to measure acceleration, and a fast computer chip analyzes those forces and calculates airplane attitude. By sensing acceleration in all axes, the AHRS can calculate how attitude has changed and thus determine the actual attitude of the airplane at any instant.

What is AHRS G1000?

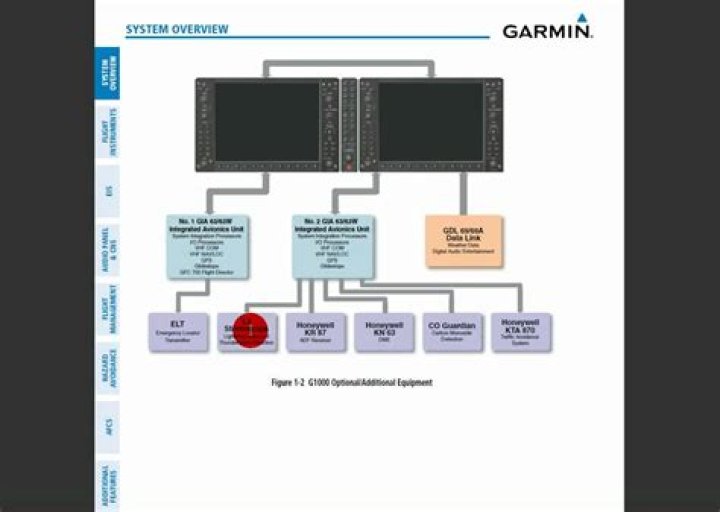

They instead have Attitude and Heading Reference Systems (AHRS) to determine the aircraft pitch, roll, and yaw, and have Air Data Computers (ADC) to give you altitude and airspeeds. … The schematic in Figure 1 of the G1000 system is typical of a glass cockpit, which shows the central role of the AHRS.

What is AHRS Garmin?

The Attitude Heading Reference System (AHRS) stabilizes Panoptix sonar views on the chartplotter screen even under rough conditions. AHRS also accounts for the transducer’s orientation to show the correct sonar view, such as Forward, Down, or Perspective mode.

How does Garmin G1000 work?

The GRS system uses solid-state sensors to measure aircraft attitude, rate of turn, and slip and skid. This data is then provided to all the integrated avionics units and GDU display units. Unlike many competing systems, the AHRS can be rebooted and recalibrated in flight during turns of up to 20 degrees.

How does the magnetometer work aviation?

Magnetometers used in aviation measure the Earth’s magnetic field in order to show orientation. … Absolute magnetometers are calibrated using their own known internal constants. Relative magnetometers must be calibrated by reference to a known, accurately measured magnetic field.

What instruments use AHRS?

AHRS have proven themselves to be highly reliable and are in common use in commercial and business aircraft. AHRS are typically integrated with electronic flight instrument systems (EFIS) which are the central part of so-called glass cockpits, to form the primary flight display.

How does a AHRS work?

An AHRS uses tiny sensors to measure acceleration, and a fast computer chip analyzes those forces and calculates airplane attitude. … A remote flux detector measures the earth’s magnetic field, and that magnetic information is applied to the track calculation to determine the compass heading we all see on the PFD.

Does G1000 use pitot tube?

As both G1000 and the steam ASI use the same pitot tube to read the airspeed, I don’t see any logical reason to show different speeds, IMHO.

Does G1000 have autopilot?

Sometimes they’ll control your altitude change target and other times they’ll help you set a target airspeed. And that’s it! Those are the basics of a G1000 autopilot system! … Here’s a video explainer that will run down the most basic autopilot functions.

What is the difference between INS and AHRS?

An INS calculates and updates the vehicle’s position (latitude and longitude), alongside the orientation. It needs to be initialized on ground, with the aircraft completely still. An AHRS does not record/update the position. It outputs real time orientation (attitude and heading) only.

Article first time published on

What is AHRS filter?

Description. The ahrsfilter System object™ fuses accelerometer, magnetometer, and gyroscope sensor data to estimate device orientation. … Call the object with arguments, as if it were a function.

What is AHRS aviation?

An attitude and heading reference system (AHRS) uses an inertial measurement unit (IMU) consisting of microelectromechanical system (MEMS) inertial sensors to measure the angular rate, acceleration, and Earth’s magnetic field. These measurements can then be used to derive an estimate of the object’s attitude.

What to do if AHRS fails?

As with steam gauge unusual attitudes, when there is an AHRS/ADC failure, recovery should always be executed using the standby airspeed indicator. The standby attitude indicator is not trustworthy at this point since a steep enough bank or pitch attitude would cause the gyro to tumble.

Does G1000 have gyros?

The gyros that are used for a G1000 system are called MEMS (micro electro mechanical system) gyros which do not have a spinning mass. They have tiny metal discs that merely vibrate.

How does the G1000 compute tas?

The G1000 uses GPS to know ground track/ groundspeed and uses the Air Data Computer to determine your TAS and the magnetometer to determine course. It uses this data to determine XTK error and the difference between TAS and GS. Which becomes wind direction and speed.

How does the air data computer work?

Air Data Computers use pressure measurement to calculate the velocity and altitude of an aircraft. … On an aircraft the forward pressure is channeled into tube known as a Pitot Tube, which is connected to a pressure sensor inside the Air Data Computer.

How does a MEMS gyroscope work?

MEMS gyroscopes generally use a vibrating mechanical element as a sensing element for detecting the angular velocity. They do not have rotating parts that require bearings and this allows an easy miniaturization and the use of the manufacturing techniques typical of MEMS devices.

How does the G1000 indicate the failure of a component?

When a Failure Occurs G1000 instrument failures mani- fest themselves with unmistakable red Xs. If you get one that is more than momentary, you may have a failure. More subtle failures, such as our autopilot disappointment, cause the airplane to misbehave.

How much does G1000 cost?

The G1000 NXi upgrade for these aircraft is available for a list price of $28,995 from Garmin Authorized Dealers (installation and hardware charges may apply), which includes the avionics system software and STC Letter of Authorization (LOA) from Textron Aviation for list price of $4,000.

Does Cirrus use G1000?

The Cirrus Perspective by Garmin is a standard cockpit. It employs many of the same underlying technologies as the G1000 system, but is designed solely for Cirrus’ specifications.

Will the G1000 NAV radio identify Morse code?

Pressing the VOL/PUSH ID knob toggles the Morse code identifier ON and OFF for the active NAV frequency next to which the tuning box is located. When the Morse code identifier is ON, an ID indication appears to the left of the corresponding active NAV frequency. The Morse code identifier is ON for the GHM VOR.

How do I turn on my synthetic vision G1000?

Press the SYN VIS softkey, then press the SYN TERR softkey, to activate the Synthetic Vision terrain display feature. Verify that the traditional blue/brown attitude depiction is replaced with the Synthetic Vision rendering within 2-3 minutes of activation. 5.

What speed does the airspeed indicator ASI show?

The airspeed indicator (ASI) or airspeed gauge is a flight instrument indicating the airspeed of an aircraft in kilometers per hour (km/h), knots (kn), miles per hour (MPH) and/or meters per second (m/s). The recommendation by ICAO is to use km/h, however knots is currently the most used unit.

Do all G1000 have WAAS?

Navigate to the AUX Chapter and then to the GPS Status page. If there is an SBAS softkey on the bottom of the MFD, your G1000 is equipped with WAAS/SBAS.

Does the G1000 have ADF?

The G1000 can tune in on NDB’s and can show an ADF needle, we just have to look for it since it’s not on the default display. … If it’s not there, press the Back button as many times as needed to get the ADF/DME button in view. Press the ADF/DME button to open the ADF tuning window. It pops up bottom left.

What is the difference between IMU and accelerometer?

An IMU is a specific type of sensor that measures angular rate, force and sometimes magnetic field. IMUs are composed of a 3-axis accelerometer and a 3-axis gyroscope, which would be considered a 6-axis IMU. They can also include an additional 3-axis magnetometer, which would be considered a 9-axis IMU.

What does an IMU consist of?

1 Inertial measurement unit (IMU) The IMU is a sensor that measures triaxial acceleration and triaxial angular velocity. The IMU consists of an accelerometer, which can output linear acceleration signals on three axes in space, and a gyroscope, which can output angular velocity signals on three axes in space.

What is the difference between IMU and INS?

An INS includes an IMU. An IMU is an assembly of at least 3 gyros and 3 accelerometers. INS is a system. It must have a computer or processor to calculate position and velocity using IMU outputs.

Where is AHRS located?

Location – The attitude heading reference system AHRS (GRS 1) is located behind the MFD, in the center of the instrument panel. Looking at center instrument panel. Description – The GRS 77 provides aircraft attitude and heading information via ARINC 429 to both the on-side GDU 1040A and the on-side GIA 63W.

What is IRS in aviation?

refers to a solid-state unit of three Ring Laser Gyros detecting accelerations in 3 dimensions; they may also contain quartz accelerometers. Inertial Reference Unit (IRU)

What is a Mahony filter?

The Mahony filter is a Complementary filter which respects the manifold transformations in quaternion space. … This angular velocity is propagated on the quaternion manifold and integrated to obtain the estimate of the attitude. Following are the steps for attitude estimation using a Mahony filter (Refer to Fig.
