How long do Graco spray tips last

Graco tips should last anywhere from 15-135 gallons when spraying latex. They may last longer with oils and stains and may last up to a few hundred gallons if spraying a thin water like material with no grit.

How long do spray gun tips last?

Generally a RAC X spray tip will spray around 45 gallons of paint before it needs to be replaced. A RAC IV or RAC V spray tip will last for approximately 40 gallons. All tips will vary depending on pressure that the user is spraying at the the type of paint being sprayed.

Do paint sprayer tips wear out?

Spray tip is easy worn spare parts. All tips will wear out in time depending on the abrasiveness of the material. The more high viscosity of the material, the faster the tip will wear out. … And if spray tip wears, you will find the fan length gets shorter and the hold size gets larger.

When should you replace spray tips?

This is the volume of water that flows through a nozzle in a given time at a given pressure. This is commonly measured in gallons per minute. If the nozzle is greater than 10% of its rated flow it is considered worn and should be replaced.

How do you know if a spray tip is worn?

1. Change in Flow Rate. In all nozzles, flow rate increases as the surfaces of the orifice or internal vane / core begin to deteriorate. …
2. Increase in Drop Size. …
3. Deterioration of Spray Pattern Quality. …
4. Lowered Spray Impact.

Will Graco tips fit Titan?

This only fits Graco RAC X tip guards but Graco tip guards will fit Titan guns. The tips alone aren’t interchangeable within the different guards though.

How long do Airless sprayers last?

Long 6 months to 1 year A few cap-full’s per quart of mineral spirits. Apply many drops of Graco Throat Seal Liquid (TSL) to the cup & rod while the pump is cycling the protestant through.

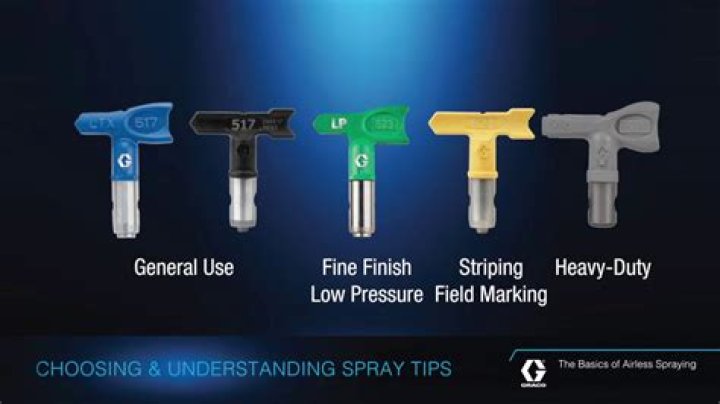

What is a 311 spray tip used for?

The reversible RAC IV SwitchTips are the most widely used tip for spraying a variety of coatings from lacquers to exterior paints. Use the Reverse-A-Clean (RAC®) feature to quickly clear tip clogs by simply twisting the tip and spraying in the reverse position.

When should a nozzle be replaced after measuring its diameter with a nozzle gauge?

NOTE: The nozzle should be replaced when the orifice is worn more than 1/16″ larger than the original orifice size as this is the point that performance begins to dramatically decline.

Are Graco spray tips Universal?

Threads on the spray guard are universal – the standard size is 7/8” – and fit most spray guns. You can use Graco guards on Wagner spray guns, and Wagner guards on Graco spray guns. FARBMAX and Titan also use the standard 7/8″ thread, so you should be able to use the spray guards across all models and brands.

Article first time published on

How do you clean paint sprayer tips?

1. Remove the spray tip and tip guard from the gun.
2. Remove the fluid intake and drain tube from the paint and wipe any excess paint off the outside.
3. Place the fluid intake into flushing fluid.
4. Place the drain tube into a waste pail.
5. Turn the prime valve to spray.

What causes bad spray pattern?

Pump Not Providing proper pressure – Airless Paint Sprayers Depend on consistent pressure to be able to atomize a coating. If your sprayer stops pressurizing consistently it will create uneven spray patterns or even inconsistent patterns.

How do you replace a spray paint nozzle?

1. Step 1 – Remove the Clogged Nozzle. If you see then on the tip of your spray paint can is the small little button you push for the paint to escape, this may get clogged because of old paint is dried in the valve. …
2. Step 2 – Blow Air through the Valve. …
3. Step 3 – Spray Valve Replacement. …
4. Step 4 – Dry the Nozzles before Use.

Do you have to clean Graco sprayer between coats?

I typically clean the tip and guard out at the end of the day or in-between coats if there’s down time or at the least in a cup/bucket of water. Think about paint in a can.

Can I leave paint in sprayer between coats?

Using standard paint materials under normal conditions you can leave the paint in the gun until the next coat but you should clean the gun when you’re done painting, don’t wait a long time after painting to clean the gun.

Are Graco and Titan parts interchangeable?

yes the hoses as long as the connectors are the same size threads as the ones you are replacing ,then you are fine,ive heard and seen guys use g-10 guns which is a wagner cheap gun on gracos and titans…

Does Graco extension fit Wagner?

The Graco name gives you the trust you need to know that it will be quality. … Its universal compatibility with standard size connectors means your Graco Magnum, Titan, or even Wagner sprayer will all accept this tip extension.

Why does my airless paint sprayer keeps clogging?

This can be caused by the air pressure being too weak, which can stop the liquid from atomizing, or due to the liquid being of a type that quickly hardens once in contact with the air. The second form of clogging is due to spray pressure being too high.

How do you clean a clogged airless paint sprayer?

When airless filters get clogged, I’ve found the easiest way to remove the build-up is by soaking them in de-natured alcohol, or ammonia, depending on the material in the sprayer, but denatured alcohol dissolves primer and paint fast. Scrub the surface with a toothbrush to remove residue from the mesh screen.

How do you get old dried paint out of a paint sprayer?

If you need it, Goof Off, alcohol, and mineral spirits are good solvents to deep clean the dry paint from your paint sprayer.

How far apart should spray nozzles be?

The most common nozzle spacings are 20 and 30 inches. Many sprayers are now being converted from 30 inch to 15 inch spacings. The 30-inch spacing is used for the lower application rates (7 to 10 gallons per acre) and the 15-inch spacing for the higher application rates (14 gallons per acre and higher).

How do you calibrate a sprayer calculator?

Fill sprayer with water. Set the sprayer pressure to the level you plan to use in the field and place a collection container under each nozzle. Run the sprayer for 3 minutes and 45 seconds. The cups (8 oz) of water collected equals the gallons per hour (GPH) output of the nozzle.

What is a 517 spray tip used for?

The reversible RAC IV SwitchTips are the most widely used tip for spraying a variety of coatings from lacquers to exterior paints. Use the Reverse-A-Clean (RAC) feature to quickly clear tip clogs by simply twisting the tip and spraying in the reverse position.

What is a 211 spray tip used for?

The 211 spray tip is used to work with light lacquers and spray more accurately. For example, to paint beams and window frames. To paint larger surfaces, such as ceilings or tables, it would be more appropriate to use a 411 spray tip with lacquers or paints / interior materials.

What size tip should I use to spray primer?

A general rule of thumb is: Heavy-bodied primers and primer surfacers work best when you use a nozzle size of 1.7 to 2.2. Basecoats should be sprayed with a 1.4 to 1.6 nozzle.

What is a 519 spray tip used for?

Achieve greater control and less overspray on different surfaces with a wide range of coatings, from stains to exterior paints. 10 inch spray pattern ideal for larger surfaces such as houses/buildings, walls and ceilings.

What is a 525 spray tip used for?

The Reverse-A-Clean (RAC) 525 RAC 5 SwitchTip produces a 10 to 12 inch fan and has a 0.025 inch orifice. Reverse the SwitchTip to easily clear clogs. Used for residential, commerical or industrial applicaitions. Best used with materials ranging from lacquers, latex paints and mastics.

Why does my airless paint sprayer leaving streaks?

Answer: Streaks in the spray pattern, especially heavy bands at the outside edge, indicates low pressure at the tip. … Using a tip that is larger than the maximum size or a tip that is worn larger will cause low pressure. The tip should also be the proper size for the type of material being sprayed.

How do you clean a Graco 515 tip?

Twist the lever on the side of the spray tip clockwise if it’s a Reverse-A-Clean tip. Direct the gun into a waste bucket and briefly pull the trigger. This will blow out the plug from the back side of the tip. Turn the lever back and resume spraying.

Why will my Graco paint sprayer spray water but not paint?

My sprayer sprays water but not paint? Debris is caught in the sprayer. Try reversing the spray tip 180 degrees to see is paint can be sprayed. If it can, turn the spray tip back to the spray position to spray.

Why is my Graco spray tip spitting?

Your Graco sprayer should have been primed too during set up to remove air from the pump. Without priming, air gets trapped inside the pump and hose and leads to spitting. If you did not prime the pump, disengage the pressure and cycle through some paint to purge the air. Always do this before spraying.
