What does a volt gauge do

A voltmeter works differently. Instead of reading electrical flow

Is a volt gauge important?

Voltmeters will provide you with the current status of the car battery, as well as indicating charging problems (by a gradual voltage drop indicated on the gauge). In general, if you are concerned about electrical wiring, ETB would recommend a voltmeter rather than an ammeter.

Will volt gauge drain battery?

No drain problems at all. AS an EE i can assure you that voltmeters are considered to be very high impedance items so as to not put on load on what they measure which would throw off measurements. In reality all meters are ammeters that measure current.

Why do you need a voltmeter in a car?

A Your voltmeter monitors system voltage. … Your SUV’s charging system (alternator and related components) needs to do two things – charge the battery and supply power for all vehicle needs while driving. In order to push energy into the battery, a higher voltage of about 14 volts is created.

What does a voltmeter measure?

A voltmeter is an instrument used for measuring electric potential difference between two points in an electric circuit. It is connected in parallel. It usually has a high resistance so that it takes negligible current from the circuit.

Can a alternator overcharge?

Alternators that overcharge will typically produce excess voltage to the battery, making the battery case swell up, become very hot and lose its electrolyte through boiling. … Additionally, an incorrect replacement battery in the vehicle can cause an overcharging condition.

What is better amp gauge or volt gauge?

A voltmeter and ammeter are to an electrical system what a pressure gauge and a flow gauge are to an oil pressure system: A voltmeter measures electrical pressure in volts; an ammeter measures electrical flow in amps. “Pressure” or volts is a much more useful indication than “flow” or amps.

How much voltage is too much from an alternator?

For some alternators, it’s normal to see as low as 13 volts. For some, a constant 13.6 volts is an indication of a problem. For others, it’s normal to see as high as 16 volts for long stretches. Still, it’s perfectly normal for others to see the alternator not charge at all intermittently.

What voltage is too high for car battery?

Car Battery Voltage Too High When Running If the voltage on your voltmeter is between 12.4 and 12.8, your battery is in good health. But if the voltage is more than 12.9 volts, it is a sign that your battery has excessive voltage, which can be a daunting situation for you.

What is normal voltage for alternator?

A good alternator should maintain battery voltage between 13.9 and 14.8 volts (14.2 is optimum).

Article first time published on

Can you hook voltage gauge to alternator?

The easy way to do that is to wire a gauge for your alternator, which is called an voltmeter. But to get the voltage coming out of the alternator, you really have to connect the voltmeter to the battery and therefore the ignition wiring in the vehicle, since that’s what the alternator is feeding.

Does a voltmeter draw current?

Voltmeters draw some extra current, whereas ammeters reduce current flow. Null measurements balance voltages, so there is no current flowing through the measuring device and the circuit is unaltered.

Does a voltmeter draw power?

Voltmeter basically is a current controlled device. So for its proper operation it has to draw some current proportional to the voltage across it. The deflection produced is directly proportional to the delfecting torque which in turn ultimately depends on the amount of current.

How does voltmeter read?

When there is a changing magnetic field, the voltmeter will read the amount of emf generated by the changing magnetic field enclosed in the wires connecting the positive and negative terminals of the voltmeter.

How does a voltmeter measure resistance?

Resistance is measured using an instrument such as an analog multimeter or digital multimeter. … When a current is applied to the circuit under measurement, the circuit (resistance) exhibits a voltage (or more precisely, a voltage drop). Resistance can be calculated by measuring the current and voltage using Ohm’s Law.

Will an amp gauge work with an alternator?

So… if your antique vehicle came with an amp gauge, leave it in there. It will work fine even with an alternator.

What does an ammeter tell you?

This type of gauge tells you how much and in which direction the electricity is flowing. … This sends electricity through the ammeter to the battery and when everything is running smoothly, the ammeter will show a positive (+) reading.

Is the alternator a generator?

An alternator is an electrical generator that converts mechanical energy to electrical energy in the form of alternating current. For reasons of cost and simplicity, most alternators use a rotating magnetic field with a stationary armature.

What are the signs of a bad alternator?

• Car Won’t Start. A dead battery almost always lies behind a car that won’t start. …
• Engine Stalling. A dead alternator almost always leads to a car that won’t start. …
• Electrical Issues. A dying alternator can lead to a wide range of other electrical issues. …
• Unusual Sounds.

What are the symptoms of a failing alternator?

Signs of a Bad Alternator Some of the things to look for are no-starting and trouble starting, dimming lights and problems with stereo system output. If your car starts but stalls when you’re underway, your battery is probably not being recharged due to a faulty alternator.

How do you know if your battery is overcharged?

#1 Symptom: If you can touch the battery sides, they should generally be cool. If the sides are warm or even hot to the touch, it indicates overcharging. You need to do this check after driving the vehicle for at least 30 minutes or more.

What causes battery gauge to spike?

When the battery’s state of charge is low, the voltage is raised slightly to quickly put the charge back in. When the state of charge is high, the voltage is lowered slightly to prevent overcharging. If the vehicle has a voltmeter gauge, you may see the voltage move up or down.

Can a car battery explode if overcharged?

A battery can quite simply die from being overcharged. … A small electrical spark can ignite the gas and cause the battery to explode, sending plastic and lead shrapnel flying around, in addition to a caustic sulfuric acid spray. Obviously, this is the most dangerous side-effect of an overcharged battery.

Can an alternator drain a battery?

A car alternator recharges the battery and powers certain electrical systems like lights, radio, air-conditioning, and automatic windows. If your alternator has a bad diode, your battery can drain.

What causes high voltage in a car?

There are a few reasons that can cause your battery to have a high voltage. Your battery could have a loose connection. Loose connections disrupt the flow of electricity so your battery can either be improperly charged or improperly discharged. … The alternator can also cause high voltage.

Does an alternator produce AC or DC?

Car batteries operate on one-way direct current (DC) electricity, while alternators output alternating current (AC) electricity, which occasionally flows in reverse.

Does the alternator affect acceleration?

The falls in the electrical power of a broken alternator can cause a malfunction of these systems, leading to a malfunction of the engine. Symptoms will be the slowing down, the failure, the poor acceleration, the hesitation and the stalling.

What causes low alternator voltage?

Poor ground connections are a cause of low charging output. There are positive and negative battery cable connections, the BAT+ power connection, and the engine ground strap. Overcharging can be caused by voltage dropping on the negative side.

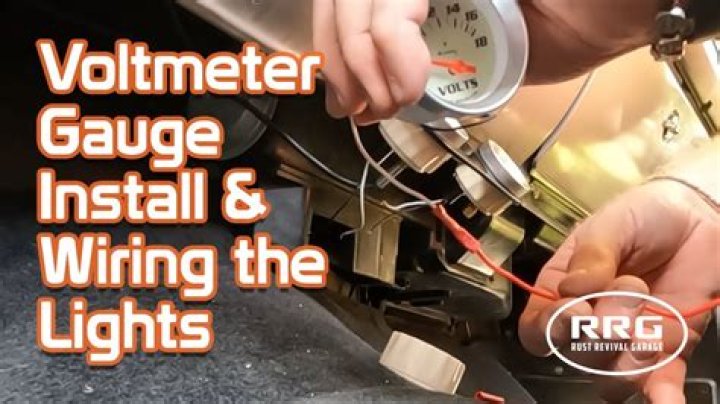

How do you install a voltage gauge?

1. Find a mounting location for the voltmeter; under the dash usually works. …
2. Use 16-gauge wire for the hookup if the wire was not provided with the voltmeter kit.
3. Remove the bottom of the dash to gain access to the harness. …
4. Confirm that you have a good constant-on power wire.

Do voltmeters have resistance?

An ideal voltmeter has infinite resistance. Too low of an internal resistance in a voltmeter will adversely affect the circuit being measured. Vacuum tube voltmeters (VTVMs), transistor voltmeters, and potentiometric circuits are all means of minimizing the load placed on a measured circuit.

What happens when current flows through a voltmeter?

When you connect a voltmeter in parallel, the equivalent resistance of the circuit decreases and the total current increases. But at the same time the current also gets divided across R2 and RV which results in lower current through R2. The latter effect dominates and a lower potential difference is obtained across R2.
