What is a rolling mill used for
By William Howard

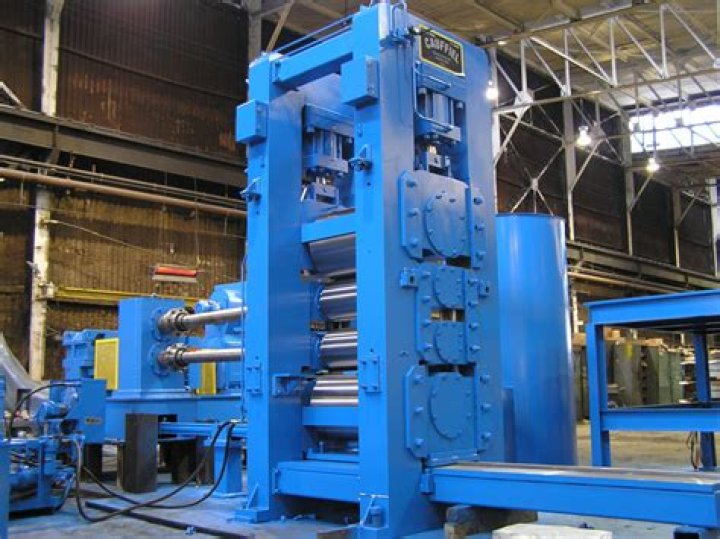

Rolling mills are a type of metal forming machinery that process various metals through one or more sets of rolls to reduce thickness, create uniform thickness, imprint a design or compact loose material.
What is made in a rolling mill?
Roll stands holding pairs of rolls are grouped together into rolling mills that can quickly process metal, typically steel, into products such as structural steel (I-beams, angle stock, channel stock), bar stock, and rails.
How does a cold rolling mill work?
How Does a Cold Rolling Mill Work? … These mills take coils of hot-rolled, pickled products and pass them through, making them thinner. Once the metal has passed through the rolls and has reached its desired thickness, it’s done being rolled but it is not quite ready for use.
How many rollers are used in rolling mill?
Explanation: In four high rolling mill, there are four rolls employed for roliing. The direction of two rollers is the same and the remaining two rollers roll in opposite directions. 6. The desired shape and cross section of the billet is achieved in one pass.What are the types of rolling mills?
- Four-high rolling mill. A four high rolling mill is used for reducing material to minute thicknesses. …
- Cluster rolling mill. …
- Continuous Mill. …
- Planetary Rolling Mill.
What are rolling defects?
One of the most common rolling defects is the occurrence of fibers at the edge, which are longer than those at the center. This occurs when concave rolls bend leading to elastic deformations. Thickness at the center implies that the edges are more elongated.
What is cold rolling?
Cold rolling is a process by which metal is passed through rollers at temperatures below its recrystallization temperatures. The metal is compressed and squeezed, increasing the yield strength and hardness of the metal. Cold rolling of metal strip is a special segment within the metalworking industry.
What is the benefit of cold rolling?
Greater strength: Cold rolled steel can exhibit strength up to 20% greater than that of hot rolled steel, which makes it more suitable for use in high-stress applications. Better surface finishes: Parts and products made from cold rolled steel generally have a smooth and shiny surface that is free of rust and scale.What is hot rolling and cold rolling?
It’s important to note that the main difference between hot rolled and cold rolled steel is one of process. “Hot rolling” refers to processing done with heat. “Cold rolling” refers to processes done at or near room temperature. … It may seem obvious, but some types of steel are better suited for certain applications.
What are three advantages to Cold rolled steel?- Increased Strength. Cold-rolled steel is significantly stronger than hot-rolled steel. …
- Improved Surface Finish. In addition to being stronger, cold-rolled steel has an improved surface finish. …
- Tighter Tolerances. …
- Multiple Options. …
- What Are the Disadvantages of Cold-Rolled Steel?
How are rolling mills classified?
Based upon the rolling process, rolling mills are classified as (i) reversing mill, (ii) semi continuous mills, (iii) continuous mills, and (iv) tandem mill. Reversing mills are those rolling mills in which the rolling direction changes after each pass.
How many rollers are used in 4 high rolling mills?
The four-high rolling mill consists of four rollers, two of which are working rollers (small diameter) and the other two are backing up rollers (larger diameter). The all four rollers are arranged above one another in a vertical plane.
What is three rolling mills?
Three-high rolling mills consist of a large back up roll, small work roll, and another large back up roll. The purpose is to have a very minimum amount of reduction. Three-high mills are commonly used for making bearing material for gasoline and diesel engines (see cladding).
What is a wire mill?
A Rod and Wire Mill draws out molten metal into useful rods and wires. This is a subset of metal rolling, used to make shafts, rebar, thin rods, down to wire. Thin wire can then be produced by wire drawing through a die.
What is cold rolling mill in steel plant?
In simple terms, cold rolling is an industrial process used to change the material properties of sheets or strips of metal. The metal is fed between two rollers which compresses it. The resulting mechanical properties vary, depending on how much strain is applied.
What is stronger hot rolled or cold rolled?
Cold rolling produces steel with closer dimensional tolerances and a wider range of surface finishes than hot rolling. It is also up to 20% stronger than hot rolled through the use of strength hardening. When making more precise shapes, the process involves: Breakdown.
What is a cold mill?
A Cold Mill rolls coils of pickled steel from the pickle line at ambient temperature, using coolant oil. The cold mill produces steel and stainless steel and is also used for aluminum, aluminum foil, and copper.
What is Alligatoring in rolling?
Alligatoring is the splitting of a rolled slab into two halves across a plane that is parallel to the rolling plane. An example is shown in Figure 1. … In the present study, spheroidized steels were sub- jected to relatively severe plastic deformation by cold rolling.
What causes Alligatoring in rolling?
Alligatoring is the accidental splitting of a piece of sheet metal to form two open ends. … Another possible factor could be that there is too much carbon content in the metal, causing it to react in this way regardless of the behavior of the rolling mill.
What do you understand by rolling?
moving by revolving or turning over and over. rising and falling in gentle slopes, as land: rolling hills.
Can you weld cold rolled steel?
If you’re planning on welding, both hot and cold rolled metals will weld just fine – but keep in mind that cold rolled metal will take on the appearance, and some of the other characteristics of hot rolled metal after being welded.
What are the disadvantages of cold drawn shafts?
Disadvantages of cold rolling: Although there is no thermal plastic compression in the forming process,residual stresses still exist in the cross section,which will inevitably affect the overall and local buckling properties of the steel.
What is the difference between cold rolled steel and galvanized steel?
That’s because cold-rolling is a technique for forming the steel, whereas HDG is a technique for treating it to protect it from corrosion. Galvanized steel generally has much better corrosion resistance, although it’s less suitable for high-temperature conditions.
Will cold rolled steel rust?
Cold Rolled Steel is a mill product made with a high degree of gauge accuracy and uniformity of physical characteristics. … Because cold rolled steel sheet is prone to rusting, standard practice is to apply a rust-preventative oil at the exit end of the temper mill (the last processing step).
Is cold rolled steel good for knife making?
1095 forging steel is cold rolled & annealed with a bright finish which makes it perfect for forging, blades, tools & other parts. 1095 has a carbon content of . 95% which makes makes this a hard steel that will reduce the amount of wear that a blade will experience over time.
Will hot rolled steel rust?
The down side to hot roll dry is that because it does not have a finish it is prone to rusting. However, you may notice a sculpture in a hotel lobby, airport, or office building that appears to have a rusted finish.
What are 4 of the standard roll configurations?
Simple roller die configurations: (a) basic open rolling or roll flattening, (b) four-roll configuration with edging rolls, and (c) four-roll “turkshead” configuration.
What is a four high rolling mill?
Rolling mill consisting of four rolls or known as a 4 High rolling mill is used for reducing material to extremely small thicknesses. Through the use of larger backup rolls, the issues of roll deflection can be avoided and smaller work rolls can be used.
What is the primary advantage of a 4 high rolling mill compared to a 2 high mill?
The biggest advantage of a 4-high mill is that the work roll can be large or small in diameter and allow for substantial reduction because the area under the roll is substantially reduced.
What is planetary rolling mill?
Planetary Rolling Mills: The Planetary Mill is a medium output mill for rolling of steel strip. Its output is less than continuous mills of many stands but more than the reversing two-high or the three-high mill. This mill can be used to roll all metals but it is especially useful for those which have low ductility.
Which of the following mill action is like more of forging than the rolling of the metal?
Explanation: The planetary mill consists of a primary larger roll surrounded by small backing up rolls, the sheet is pressed by small rolls as it moves and this repeats because of the size of roll; hence the action is more like forging than rolling.
