What is faucet spout height

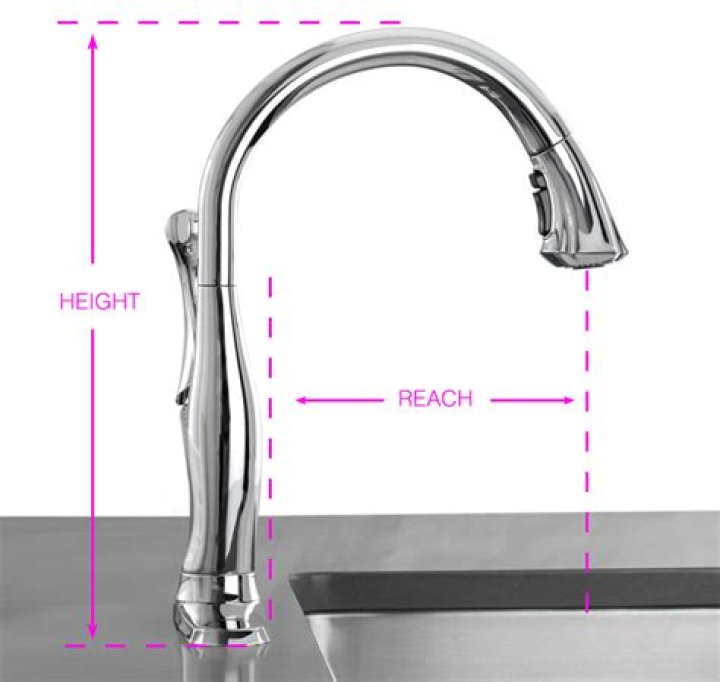

Spout reach is measured from the center of the spout base horizontally out to the water stream. Spout height is measured from the sink/countertop surface vertically up to the highest point. Refer to the specification sheet for your faucet for specific measurements.

What is faucet spout clearance?

Clearance. For a faucet that swivels and for easy cleaning, measure the distance between the faucet hole and the backsplash to ensure that the faucet has enough space to move freely (without the spout or handle hitting the wall).

What is the standard height of a faucet?

Mop sinks are usually 6”-12” high from the floor. Your sink faucet’s height is between 14.5”-16”. The standard faucet height is 3 feet (36”) from the ground. If the faucet is too high from the sink, water will splash all over the sink area.

What is the standard spout reach for a kitchen faucet?

Find out the length or reach of your faucet’s spout (also called the projection). The distance between the faucet body (where the water enters the faucet) and the areator is usually 8 to 10 inches for a kitchen faucet. However some oversized faucets have a reach of 11 to 16 inch.

What does spout projection mean?

Projection – This is the measurement of the faucet spout’s reach into the sink and from side to side as it swivels (see red notations). This is calculated from the center of the stem to the center of the spout.

How do you determine the height of a kitchen faucet?

If you have windows or cabinets above your sink, measure upward from the center mounting hole to find the maximum overall height and ensure your new faucet can fit comfortably underneath. To find the ideal spout reach, measure from the center mounting hole forward to the center of your sink.

What is the difference between faucet height and spout height?

Make certain you are choosing a faucet with adequate height to accommodate the items you’ll be washing or filling. The higher the spout, the easier it is to fit tall pots under it for filling or cleaning. If you have a shelf above your sink or a wide window ledge, a tall faucet may not fit.

How high should wall mount faucet be above sink?

How far out should it reach? Connolly recommends that the faucet should extend out at least seven inches from the back of the sink, so you can wash your hands without banging them against the sink. So, if your countertop is 24 inches deep, that would put the spout about 11 inches from the wall.

How far should faucet holes be from sink?

Typically, faucets are centered on the sink. From there, holes are drilled 4, 6, or 8 inches apart, when measured from the center of one hole to the center of the next hole.

How far back should faucet be from farmhouse sink?

The distance between the faucet holes and the edge of the sink depends on the faucet style and should be such that the spout completely clears the edge of the sink. You’ll usually find the setback distance, which is typically from 2 to 4 inches, listed in the product specifications.

Article first time published on

What is the average height of a kitchen faucet?

According to Spurgeon, “by default, the typical industry standard from the finished floor to the top of the countertop should be three feet.” A very tall or short homeowner may veer from the standard measurement and customize the counter height to fit their needs, but outside of customization, 36 inches is the …

What is the height of diverter?

Common height is anywhere between 36-48″ for just a shower controlled diverter.

Are faucet sizes standard?

What are the standard faucet hole sizes for kitchens and bathrooms? The standard faucet hole sizes for kitchens and bathrooms are 1 3/8″ (1.375 Inches or 34.925 mm) in diameter unless otherwise mentioned in the specification. However, faucet holes may vary in size depending on the particular make and model.

How far should faucet be sprayer?

When measuring the spacing between faucet tailpieces or between holes in the countertop, the correct measurement is always “on-center”, from the center of one tailpiece to the center of another. The sprayer or soap dispenser should line up with the faucet.

How far should faucet hole be from wall?

In this case there should be about 3 inches of space from the edge of the sink to the wall/backsplash. In most cases this will allow at least a one inch rim around the front of the sink. Again, this measurement will depend on the size of your sink as well as your countertop depth.

How much space should be between backsplash and faucet?

from the back edge of the faucet where it meets the countertop, about 3/4″. From the center of the faucet hole, about 2″. That gives the handle about 1/4″ of clearance from the backsplash in the full hot position.

What does 8 inch spread faucet mean?

On an 8″ spread there will be 8″ from the center of the hot faucet to the center of the cold faucet. Like this: A 4″ or mini spread will be quite close together and make it difficult to clean around the handles and spout.

What is the standard height from floor to the top of the sink?

Sinks that comply with the ADA requirements measure 34 inches from the rim of the sink to the finish floor.

How do you measure for a new faucet?

Measure the distance between the handles. Hold the the tape measure above the faucet if it’s in the way. If the distance is six inches or more you need a “widespread” or “eight inch spread” faucet.

How do you measure hole spacing on a faucet?

Make sure to measure your faucet centers. This refers to the distance, in inches, between the pre-drilled faucet holes in the sink or vanity, from the very center of the left hole to the very center of the right hole. These center points should correspond to the center connections of the faucets to be installed there.

What height should a vanity be for a vessel sink?

The comfort height for a vessel sink vanity is 29-30 inches with a standard height for these same vanities floating around 25-26 inches. For the purposes of installation, keep in mind that vessel sinks themselves will add an additional 5-6 inches.

What height should bathroom sink be?

A bathroom sink should sit somewhere between 29 and 36 inches high, depending on several factors. Traditionally, 32 inches was the norm, but modern standards have made 36-inch height common as well.

Why is the faucet so close to the back of the sink?

Faucets are at the back so water connections had minimum interference with under-sink storage, and to leave area over sink clear for physical wash access.

How far from faucet should soap dispenser be?

In kitchens, sink-mounted soap dispensers typically measure 8″ on center from the faucet. This means that the distance between the center of the hole for the dispenser and the center of the hole for the faucet (or the handle nearest the dispenser) is 8 inches.

Should faucet line up with drain?

Ideally, the flow of water from the faucet should go down the drain. Don’t forget that the faucet usually sits back either on the sink rim if it’s a drop in or a bit farther back it it’s a deck mount. So watch that.

What sizes do kitchen faucets come in?

Spouts: Select a faucet with a spout that reaches as close to the center of the sink as possible. Average-size sinks require an 8 to 10-inch spout, while larger sinks and sinks with multiple bowls may require a 12 to 14-inch spout. Standard spouts commonly rest 3 to 5 inches above the plane of the sink.

What is the standard height for a tub valve?

A height of 28 inches, or 2 feet 4 inches, is standard for valves in bathtub shower units. For shower stalls, install the valve at the standard height of 48 inches, or 4 feet. Install faucets at the same height as the valve, equidistant from the valve.

What is the standard height of shower valve?

For shower-only controls, between 36 and 48 inches from the floor is common. Employ your helper to hold the fixture at an estimated height and then see if it’s a comfortable reach for all users.

What is the height of shower head?

What Is the Standard Shower Head Height? Let’s tackle the most important question right away by pinpointing the standard height for a shower head. According to Hunker, the industry standard for how high a shower head should be is 80 inches.

What does a 4 inch centerset faucet mean?

The four-inch measurement for a centerset faucet refers to the center to center distance between the two furthest mounting holes. Centerset faucets have three mounting holes. … All faucets with this kind of mounting pattern are measured between the two furthest spaced openings to get the desired measurement.

Are faucet sizes universal?

Are All Kitchen Faucets the Same Standard Size? Since there are many different types of kitchen faucets, there is no standard or typical hole size. The faucet hole size will vary depending on the kitchen faucet you plan to install. Measure the faucet hole size before you shop.
