What is flash protection boundary

Flash Protection Boundary (outer boundary): The flash boundary is the farthest established boundary from the energy source. If an arc flash occurred, this boundary is where an employee would be exposed to a curable second degree burn (1.2 calories/cm2).

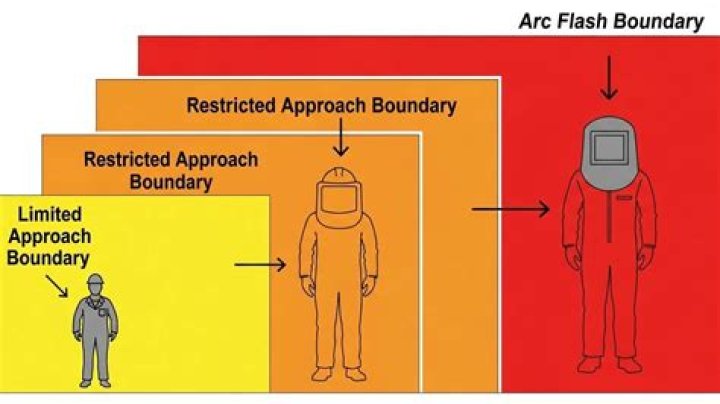

What are the four protection boundaries?

• Flash protection boundary (outer boundary) The flash protection boundary is the farthest established boundary from the energy source. …
• Limited approach boundary. …
• Restricted approach boundary.

How far is the arc flash boundary?

An arc flash boundary is the distance from the equipment in question to the point where the energy that would be present in an arc flash is 1.2 cal/cm2. This is the level at which it will cause only second-degree burns rather than third-degree.

Why is the arc flash boundary defined?

The Arc Flash Boundary determines the distance from the equipment at which the Incident Energy of an arc flash would be 1.2 cal/cm². The electrical worker has to be able to determine his relative risk, according to the distance from the equipment. The Arc Flash Boundary helps him to determine a safe distance.

What is the distance to live electrical parts for the flash protection boundary?

Best practice is to stay 12” or more away from the hazard. This area should only be entered by qualified persons and the qualified person should be wearing Personal protective Equipment (PPE). Any work done within the 12” is considered energized work and requires an Energized Electrical Work Permit.

Who must be trained to never cross the arc flash boundary?

Qualified workers may cross this boundary after shock and arc flash risk assessments are performed with appropriate PPE if needed. Workers without specialized training should stay outside of the boundary unless they have appropriate protection and are escorted by a qualified person.

What is Category 2 arc flash?

In PPE CAT 2, workers need the following clothing: Required Clothing: Arc Rated Long Sleeve Shirt and Pants or Arc Rated Coverall with minimum arc rating of 8 cal/cm. 2. Required AR Face and Head Protection: Arc Rated Arc Flash Suit Hood or AR Face Shield, Sock Hood/Balaclava with minimum arc rating of 8 cal/cm. 2.

What is the main purpose of the limited approach boundary or arc flash boundary?

There are two shock protection boundaries; the Limited Approach Boundary (LAB) and the Restricted Approach Boundary (RAB), and one Arc Flash Boundary (AFB) that must be established in order to provide a safe distance for personnel from exposed, energized electrical components.

When should arc flash PPE be worn?

electrical compartment while switching or investigating energized circuits, appropriate flame resistant clothing and PPE should be worn prescribed on the arc flash label. This does not preclude the use of other required PPE requirements for the job and/or facility. layered clothing per NFPA 70E Table 130.7(C) (11).

What are the three hazards of arc flash?

An arc flash can cause minor injuries, third degree burns and potential death as well as other injuries including blindness, hearing loss, nerve damage and cardiac arrest.

Article first time published on

Who determines the arc flash boundary?

Each piece of equipment operating at 50 volts or more and not put into a deenergized state must be evaluated for arc flash and shock protection. This evaluation will determine the actual boundaries (i.e. prohibited, limited, restricted etc) and will inform the employee of what PPE must be worn.

What is required in a limited approach boundary?

The limited approach boundary is the minimum distance from the energized item where unqualified personnel may safely stand. No untrained personnel may approach any closer to the energized item than this boundary.

How do you find arc flash boundaries?

1. Example.
2. Step 1: Enter the distance exponent X and incident energy EB at the AFB in terms of J/cm2. …
3. Step 2: Enter the previously provided arcing time of 0.05 seconds. …
4. Step 3: Multiply the normalized incident energy by 4.184 to convert from cal/cm2 to J/cm2. …
5. Step 4: Multiply answers from 1–3.

What is HRC level?

The risk levels are from 1 to 4; HRC level 1 is low risk and HRC 4 is the highest and most dangerous risk level. Level 0 is little to no risk and Level 4 is extreme risk. Which leads to the question what is an HRC? An HRC level is determined by the minimum amount of calories per square centimeter (ATPV or Cal/cm2).

Does low voltage mean low electrical hazards?

Simply put, low voltage does not mean low hazard. In the event of an accident involving electricity, if the individual is down or unconscious, or not breathing: CALL 911 immediately.

What are the three limits of approach boundaries?

The NFPA 703® recognizes three arc flash boundary levels: the limited approach boundary, the restricted area, and the prohibited area boundary.

What are the three shock protection boundaries?

There are three electrical shock hazard boundaries depending on the voltage of the appliance and termed the limited approach boundary, the restricted approach boundary, and the prohibited approach boundary.

How do you choose arc flash PPE?

1. Carry out a Risk Assessment. This will involve an Arc Flash hazard analysis to determine the potential incident. …
2. Determine the Arc Rating. This calculates the Arc Thermal Performance Value (ATPV) in cal/cm² and. …
3. Select the PC & PPE.

How many arc flash categories are there?

Personal Protective Equipment categories The National Fire Protection Association (NFPA) uses four Arc Flash PPE Categories to classify ranges of arc flash hazards, and the corresponding requirements for PPE.

What is restricted boundary?

The Restricted Approach Boundary is the distance from an exposed energized electrical conductor or circuit part within which there is an increased likelihood of electric shock due to electrical arc-over combined with inadvertent movement.

What is the difference between arc flash and arc blast?

When an arc fault occurs, there’s a massive electrical explosion. Both arc flash and arc blast are separate byproducts of that electrical explosion. The arc flash is the light and heat from the explosion, while the arc blast is a pressure wave that follows.

What do you wear under an arc flash suit?

It goes on to say that non-melting, flammable natural fiber garments, (like cotton) can be used underneath arc-rated garments, as long as the outer layers of arc rated clothing are strong enough to withstand the anticipated incident energy level without breaking open or failing.

How do you wear arc flash clothing?

To prevent arc flash and flash fires from traveling under arc rated clothing and reaching your skin, it’s important to keep shirts tucked into pants. Even if your skin isn’t visible when your shirt is untucked, the gap in protection is enough to make you vulnerable to serious injury.

What is the arc flash boundary for 480v?

The earlier mentioned voltages of 208, 220, 240, 277, 380, and 480 volts AC have a restricted boundary of 12 inches.

What is true about the arc flash boundary?

Simply put, the arc flash boundary is the distance at which an electrical arc can flash/expand outward, which may endanger employees working on electrical equipment. People that are not adequately protected must stay away from a potential arc flash source by this calculated minimum distance at all times.

What are arc flash requirements?

Arc-flash hazards are also addressed in §1910.335(a)(1)(v), Safeguards for personnel protection, which requires that personal protective Equipment (PPE) for the eyes and face be worn whenever there is danger of injury to the eyes or face from electric arcs or flashes or from flying objects resulting from an electrical …

Why is arc flash so harmful?

According to the National Institute for Occupational Safety and Health (NIOSH), five to 10 arc flash incidents occur each day in the U.S. Arc flash is extremely dangerous because it can produce some of the highest temperatures known to occur on earth, up to 35,000 degrees Fahrenheit, which is four times the temperature …

How can arc flash be prevented?

1. De-energize electrical equipment.
2. Wear suitable Personal Protective Equipment (PPE)
3. Keep at a safe distance.
4. Reduce the energy output from an incident.
5. Carry out a risk assessment.
6. Train on-site workers to control risks and interrupt faults.

Is arc flash required by OSHA?

OSHA does not have a specific requirement mandating that employers have arc flash studies conducted within their workplaces. However, there are a number of OSHA requirements that are a bit broader in terms of protecting workers from electrical hazards.

What boundaries are typically shown on the are flash labels?

Nominal voltage, limited and restricted approach boundaries, and PPE glove rating are also displayed on the label to help protect workers from electric shock.

What is the difference between HRC 1 and HRC 2?

HRC 1 was the lowest level with a minimum Arc Rating of 4 Cal/cm2 and increased through HRC 2 and HRC 3 up to the highest level, HRC 4 with a minimum Arc Rating of 40 meaning employees falling into this level had the highest exposure to an explosion or arc flash and must therefore where Fire Resistant Garments with the …
