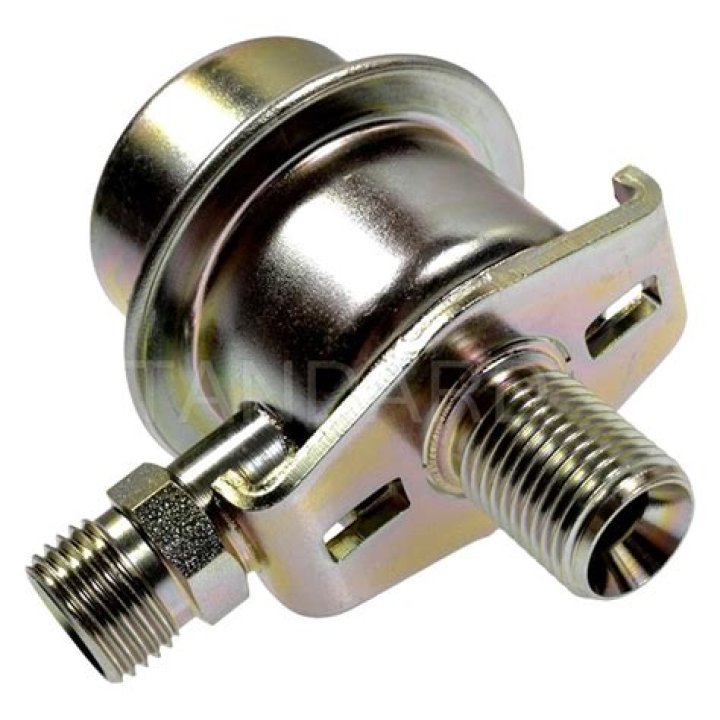

What is fuel pressure damper

What does a fuel pulse damper do? An FPD is used in fuel injection systems to attenuate (absorb) pressure pulsations generated by the fuel pump operating and by the injectors opening/closing. These hydraulic pulses can cause an undesirable noise, which can be transmitted to the passenger compartment.

What are the symptoms of a bad fuel pressure damper?

The most common symptom of a bad fuel pressure regulator is a misfiring engine and a check engine light on your dashboard. You may also notice issues like decreased engine performance, fuel leakage, and black smoke coming from the exhaust pipe.

What is the difference between a fuel pressure regulator and damper?

The FPR has a larger body and a vacuum line to regulate the fuel system pressure by vacuum load… The fuel damper is much smaller and only dampens the fuel pulses to the injectors… The next important difference is the fuel system with the fpr has 2 lines; one supply line and one return…

Do I need a fuel pressure damper?

In order to achieve a safe and consistent rail pressure, a fuel pulse damper (FPD) is often necessary. The FPD’s internal diaphragm will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and can often help idle surge, especially with high flow injectors.

What causes a fuel damper to go bad?

Leaks are the most common Toyota fuel damper failures. … Replace it if it’s seeping fuel. Occasionally, the adjustment screw loosens up, allowing the diaphragm to stroke too far downward. When this happens, the damper’s diaphragm re- stricts fuel flow, causing a severe lean condition during acceleration.

How much is a fuel pressure regulator cost?

The computer operated regulator will be more expensive, usually in the range of $150 to $300. Most fuel pressure regulators are easily accessible, although some will require more breakdown to reach the regulator or if the whole fuel rail must be removed. Look for installation costs in the range of $50 to $300.

Can you clean a fuel pressure damper?

Do not use compressed air to clean a fuel pressure regulator. If necessary, clean the fuel pressure regulators screen. If the fuel pressure regulator is immersed in a solvent bath, it will be damaged. The pressure regulator should be replaced if the filter screen is contaminated.

How does fuel pressure regulator?

A mechanical fuel-pressure regulator is a simple device. Inside, you have a spring that controls a diaphragm. That spring has a set spring rate and you regulate fuel pressure by adjusting tension on the internal spring. … As you tighten the spring, that increases the pressure at which the diaphragm inside opens.

Do I need fuel pressure regulator?

Used to ensure steady fuel supply, a fuel pressure regulator is needed to keep your car going. Even if there are dramatic fuel demand changes, your fuel pressure regulator will make sure the fuel is flowing properly. … It opens and closes to adjust properly to allow for an even and steady fuel delivery.

What are pulsation dampeners?

Pulsation dampeners absorb the energy from the pulse wave created by a positive displacement pump, much like a shock absorber on a vehicle. Absorbing those pulse waves protects pipe welds and supports, and system components from damage due to pressure or excess movement.

Article first time published on

What is pulse damper in HPLC?

The pulse damper 10 is designed for use in a liquid pumping system, such as a liquid chromatography system in which the outflow from a reciprocating pump is delivered in pulses to a flow line leading to a chromatographic column.

How do fuel pressure regulators fail?

Fuel Pressure Regulators Commonly Fail, In One Of Two Ways: When the fuel pressure regulator gets stuck and builds up more pressure then it should; it’ll cause the injectors to deliver too much fuel; causing a rich mixture (high pressure) condition.

Can a bad fuel pressure regulator cause a no start?

More than just the engine misfire, the engine will also most probably not start when the fuel pressure regulator is bad. Regardless of how many times you start the engine, it won’t turn on. … However, when the problem with the regulator is extreme, regardless of how many times you try, it won’t start at all.

How do I check my fuel pressure without a gauge?

Disconnect the hose coming from the pump to the filter and block the passage of the hose tightly with your finger. You can then start the car. If you feel that the fuel is pushing your finger hard, it means you have good pressure.

How often should you change fuel pressure regulator?

How often should regulators be replaced? Generally, regulators should be replaced every five years. Each regulator is typically stamped by the manufacturer with its date of production.

Can I drive with a bad fuel pressure regulator?

If you put too little fuel then your engine will run lean which is probably ok, but it will run hotter. This may damage your valves or pistons, requiring an engine rebuild. But yes the engine will probably run and feel ok.

Can I clean my fuel pressure sensor?

Can you clean fuel rail pressure sensor? You can clean the sensor, but it is doubtful that it will make a difference. In some very rare cases, dirt can block the passage to the sensor head, which will make the sensor work again after a clean. However, in most cases, you need to replace the fuel pressure sensor.

How do you test a fuel pressure sensor?

1. Step 1: Unplug the Sensor. The first step to begin the test is to disconnect the sensor from the car. …
2. Step 2: Connect the Multimeter. …
3. Step 3: Compare the Results. …
4. Step 4: Check the Wiring. …
5. Step 5: Take Precautions.

How does a fuel pressure relief valve work?

The pressure relief valve simply allows more or less high pressure fuel to flow into the back leak system thus increasing or decreasing the fuel pressure in the rail. Excess fuel returns to the fuel tank. It’s controlled from the ECM.

How much is it to change a fuel filter?

Fuel Filter Replacement Cost The replacement cost of a fuel filter is between $50 and $170. The fuel filter part will only be around $15 or $70 while the labor cost will be between $45 and $100. It is not a very expensive or difficult job to do at all.

What is the purpose of fuel filter?

A fuel filter is a critical part of this system as it protects your engine from harmful debris. The fuel filter screens dirt and rust particles from the fuel, keeping them from entering the engine and causing damage.

Where is a fuel pressure regulator?

You will find fuel pressure regulators typically located at the end of the fuel rail on mechanical return systems, or at the fuel tank in mechanical return-less fuel delivery systems.

Will a fuel pressure regulator work without vacuum?

When fuel pressure at the regulator is high enough, it overcomes the spring’s pressure without any vacuum assistance. However, at idle, the engine’s vacuum is high and assists the valve’s opening. … When the engine is under acceleration, fuel demand is high, and the intake manifold’s vacuum is low.

Can a car run without fuel pump?

If you have a bad fuel pump, it’s possible to start the car, but you should avoid it since the motor and pump will likely become burned out. The fuel tank doesn’t need to be lowered to have the pump replaced, so you don’t need to get the car towed.

Does a fuel pressure regulator increase horsepower?

The noob belief amongst amateur tuners is increasing the fuel pressure up a few psi from the regulator will mean the injectors are getting moaar fuel which will increase the horsepower. Wrong. Truth be told, aftermarket FPRs are not necessary and the factory OEM FPR will do the job just fine.
