What is the temperature control on a boiler operated by

A boiler aquastat controls the temperature inside the boiler just as the thermostat controls the temperature for an air conditioner or heat pump. The boiler aquastat will turn the burners on and off and also controls the circulator pump on a hot water boiler system.

How is temperature controlled on a combi boiler?

First and foremost, locate the two dials and the digital display on the front of your combi boiler. These control the output temperature for the radiators and the hot water temperature. To maximise efficiency, we recommend setting your radiator dial to 75 degrees and your hot water to 60 degrees.

How do you control the temperature of a steam boiler?

Steam temperature is normally controlled by spraying water into the steam between the first and second-stage superheater to cool it down. Water injection is done in a device called an attemperator or desuperheater.

How does a boiler controller work?

It uses a sensor to monitor the temperature of your home, and consequently it keeps an eye on what your boiler is up to. If your room thermostat senses that your home has reached its target temperature, it will switch the central heating off. Once the temperature drops, it’ll fire up the boiler again.

What temperature should my boiler be set at for central heating UK?

If you’re looking for a good balance of warmth and efficiency, you want to set your boiler to at least 65°C. Setting it a few degrees higher won’t hurt. But it’s important not to set it any lower than that. This is so bacteria in the water doesn’t grow, and cause nasty things like Legionella.

What temperature should boiler be set?

Setting the boiler temperature As a rule, setting your heating control to 75 degrees should be sufficient to give you a perfectly warm house, while also allowing your boiler to run as economically as possible. Once this is set, you shouldn’t need to adjust it.

What temperature should a Worcester boiler be set at?

During the winter, the ideal temperature setting should be 18-21 degrees. In areas that get extremely cold, then 21-23 degrees would be sufficient. If you have taken additional measures to retain heat such as wall insulation or draught-proofed windows and doors, then you could set your thermostat to 17 degrees.

What temperature should central heating thermostat be set at?

Dropping the thermostat temperature within your home is one of the best ways to ensure your home heating is efficiently managed. Even just a difference of 1 degree celsius can have a large impact in your overall heating bills. Generally, anywhere between 19-21 degrees celsius should be comfortable for most homes.

How do I adjust the temperature on my boiler?

1. Test your tap water temperature. Allow the water to run until it is fully hot and fill up a tall glass. …
2. Adjust the thermostat. …

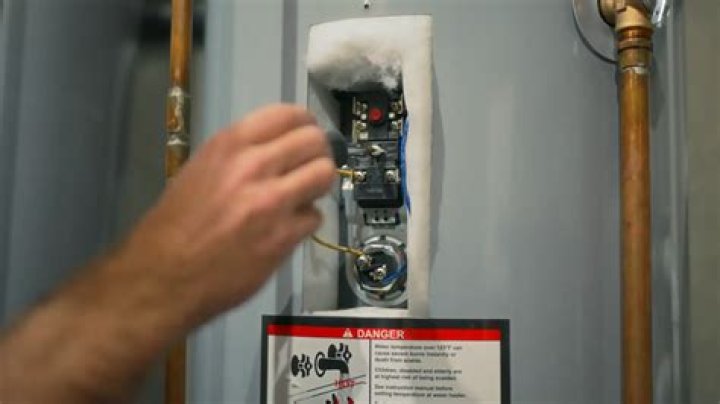

3. Turn the knob on the side of the tank. …
4. Rotate the thermostat control.

How is boiler pressure controlled?

Most steam boilers have three main controls that maintain the correct steam pressure inside the boiler and cause the boiler to shut down if an unsafe pressure is reached. These three main controls are the operator, modulation, and high limit pressure controls.

Article first time published on

How many methods of superheat temperature control are there?

A superheater is a device used to convert saturated steam or wet steam into superheated steam or dry steam. Superheated steam is used in steam turbines for electricity generation, steam engines, and in processes such as steam reforming. There are three types of superheaters: radiant, convection, and separately fired.

What is the temperature for steam?

Introduction. When water is heated at atmospheric pressure, its temperature rises until it reaches 212°F (100°C), the highest temperature at which water can exist at this pressure. Additional heat does not raise the temperature, but converts the water to steam.

What temperature should the hot water be on a combi boiler?

Combi boilers have controls on the unit which allow you to set the temperature of the water that will be circulating around the central heating system and out of the taps. The best setting for combi boilers is often recommended as 75°C for central heating and 60°C for domestic hot water.

Why is my boiler temperature low?

Low boiler pressure. Thermostat issues. Lack of water flow due to a closed valve or the pump not circulating the water around the system properly. Too much air within the system.

What is the normal thermostat temperature?

For winter, the ideal thermostat temperature is 68 degrees Fahrenheit when you’re at home. Energy.gov 68 degrees is a good room temperature while you’re awake at home, but recommends lowering it while you’re asleep or away. Lowering your thermostat 10-15 degrees for eight hours can reduce your heating bill by 5-15%.

How does a motorized zone control valve work?

Each zone valve is controlled by its own zone thermostat. End switches in each zone valve control the central circulator and the burner. On a call for heat, the valve is opened. … This ensures that the circulator and burner are powered when any zone calls for heat.

What is steam boiler control system?

The steam boiler control system was previously “automated” in that you could control each individual boiler. … A pressure sensor in the main steam supply connects to a pressure output signal coming from the large main steam out manifold.

How does a boiler pressure switch work?

What Is an Air Pressure Switch? The air pressure switch in a boiler ensures that the fan expels the waste gases through the flue before allowing the boiler to fire up. The fan creates a draft which allows harmful gases to be released from the boiler via the flue.

How do you control superheat?

Setting, Adjusting Superheat To adjust the static superheat, turn the valve’s setting stem. Turning clockwise increases static superheat and effectively reduces refrigerant flow through the valve. Turning counterclockwise reduces static superheat and increases refrigerant flow.

What is superheating in boiler?

Superheaters are used where only dry steam is required in a process/machines such as Turbines. Any moisture content in a steam in such cases happens to degrade or corrode the machine thereby affecting its average operating life. So, superheater converts low-quality steam to high quality for end users.

What are boiler trims?

Boiler trim refers to the standard safety and control devices which are installed on steam and hot water boilers. Items such as low water cut offs, relief valves, pressure gauges, temperature gauges, pressure controls and temperature controls are in stock for use on a wide variety of boiler types and designs.

What is the minimum temperature of steam?

The minimum temperature for steam is 100c but is there a maximum temp?

What temperature is 15lb steam?

PressureTemperatureTemperature(p.s.i)(°F)(°C)15249.8121.020258.8126.022261.2127.3

What is the temperature of water Vapour?

Water vapor (H2O)Melting point0.00 °C (273.15 K)Boiling point99.98 °C (373.13 K)specific gas constant461.5 J/(kg·K)Heat of vaporization2.27 MJ/kg
