What is the voltage of a nutone doorbell

Most doorbells work on 16 volts, which is what this transformer supplies. The Nutone KB10 is an older model and probably does work on 16 volts.

How do I know the voltage of my doorbell?

Disconnect your existing doorbell. …
Set the knob on your multimeter to AC (the V with a wavy line on top or next to it).
Connect the two probes from the multimeter to the wires from your doorbell.
Read the voltage level on your multimeter’s display.

Are doorbells AC or DC?

Simple Devices Door chimes are very simple electrical devices. They operate on low voltage (commonly 16 volts) and the electrical current is direct current (DC). Regular household high voltage wiring is alternating current (AC).

What is the standard voltage for doorbell?

Doorbells operate on very low voltage. Older models typically require just 8 to 20 volts of electricity — most often 16 volts — while newer models take 24 volts of electricity. Newer models have higher voltage output to accommodate longer runs of wire in larger homes.

What breaker is my doorbell on?

The doorbell is attached to a transformer to step down the voltage. This transformer will be on a 15 or 20 amp breaker.

How much power does a doorbell use?

A typical electric doorbell uses approximately 2 watts. This is due to a step-down transformer whose main task is to convert 120 V to an 8 to 20 V which then uses a power of 2 watts when the bell rings. If you use your home doorbell each day for 6 hours, it will cost you around 0.57 cents per year.

Do doorbell wires have power?

Doorbells get their power from the home’s electrical system. … The transformer is a metal box with two terminals connected to the doorbell wires. It takes the standard electrical voltage in your home, in most cases 110 to 120 volts, and lowers it to about 10 to 24 volts.

How do you power a doorbell?

Step 1: Turn Off the Power. …
Step 2: Choose a Good Location. …
Step 3: Remove the Baseboard and Trim, then Drill a Connecting Duct. …

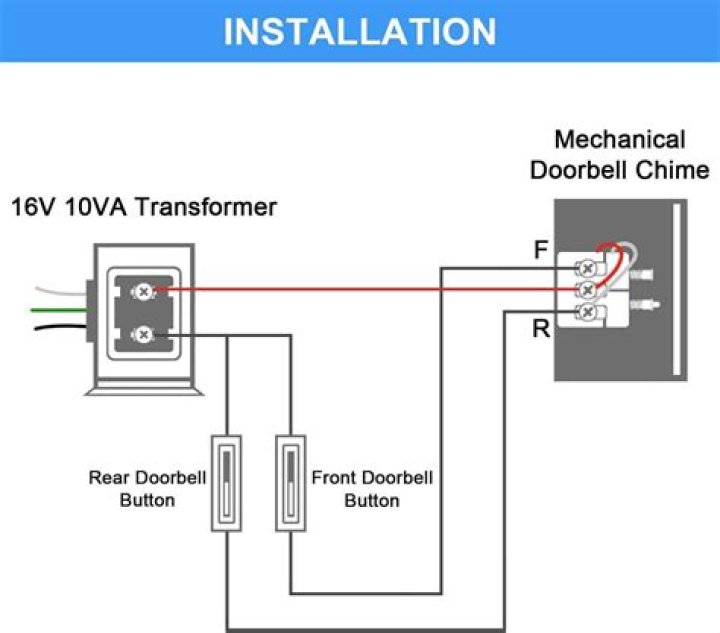

Step 4: Wire the Doorbell and Transformer. …
Step 5: Connect Doorbell Wire to the Button. …
Step 6: Test the Doorbell.

What is the output voltage of a doorbell transformer?

Use a multimeter to check your doorbell transformer. A doorbell or buzzer works on 10 volts, and chimes work on 16 volts. A doorbell transformer changes your standard household voltage of 120 volts to either one of the voltages needed. With a multimeter, you can accurately check your transformer for the correct output.

Does ring doorbell work on 12v?

It works with a 12v battery. The battery is DC hence wiring it with dc current it should work.

Article first time published on

Will doorbell still ring if breaker is off?

Doorbells have several electrical components that allow them to work. From the button to the chime to the transformer, all of these need to be connected and working for the doorbell to sound. Removing or disconnecting any of these pieces will effectively disable any doorbell.

Do doorbells have fuses?

Wired doorbells have a bell, a junction box with a transformer on it, and the button at the door. Ringing the bell connects the ground wire together, which activates the circuit. … When the bell doesn’t ring, look at the circuit breaker or fuse box. If it hasn’t tripped, turn off power to the doorbell.

Does a doorbell transformer need its own breaker?

3 Answers. It doesn’t require its own breaker because it’s a low load. A breaker terminal shouldn’t have multiple wires within it. Take the doorbell out, add a pigtail, and wire nut it together.

Do doorbell transformers put out AC or DC?

6 Answers. Your door bell is being fed from a step down transformer. Somewhere in your house is a small transformer that is getting 120VAC (primary) and stepping it down (secondary) to a lower AC voltage between (typically) 16 to 24VAC.

How do you know if your doorbell transformer is bad?

A reading of 16 volts indicates the transformer works properly. Less than 16 volts indicates the transformer needs replacing. Touch each probe of a low-voltage test light to each screw head on the transformer if you are not using a multimeter. If the lamp fails to light, the transformer is bad.

Will doorbell wires shock you?

You don’t have to be afraid of working with electricity. If you come in contact with the wires, the doorbell circuit will not give you a shock. A transformer reduces the 120-volts carried by most electrical circuits to the 10 to 16volts needed to run the doorbell.

Where does a doorbell transformer go?

In many houses, the doorbell transformer is installed in a junction box behind the internal doorbell chime or mounted near other electrical components in a basement or crawlspace.

Can I use a 16V transformer on a 10v doorbell?

No, 16v is too high. Most likely it will damage your 10v chime. … It could damage the chime.

Do you need a transformer for ring doorbell?

The Ring Video Doorbell can only be connected to an AC transformer. … In addition to the equipment included in your Ring Video Doorbell box, You will need to purchase an electronic resistor. A resistor is REQUIRED in place of a mechanical or electronic doorbell kit for this alternate configuration to work successfully.

Do you need electricity for a ring doorbell?

Like most other smart doorbells, Ring lets you see who’s at your door and interact with your guests before letting them in. Unlike its competition, however, Ring doesn’t require dedicated electrical wiring; instead, it can work off of rechargeable battery power.

How do you disable a mechanical doorbell?

Open up “Device settings” in the ring app. Click on “Doorbell Kit Settings”. Then turn off the “Ring my in home doorbell” setting.

Why is my ring doorbell not getting power?

The most common fix for power issues is bypassing your doorbell with a Pro Power Kit V2. … Finally, if you don’t have an internal doorbell mechanism or your existing system is unusable, you solve power problems with the use of a Plug-in Adapter. Click here for help installing a Plug-in Adapter.

Can you double tap a doorbell transformer?

The only manufacturers that make circuit breakers that are designed to hold two conductors are Square D and Cutler-Hammer, but not all of their circuit breakers can be double-tapped. … It doesn’t matter if it’s just a simple doorbell transformer wire that’s added onto the circuit breaker.

Does a doorbell need a dedicated circuit?

One of the easiest ways to fix a malfunctioning doorbell is to reset the circuit. Your doorbell does not need a dedicated circuit, so it will share one with a number of other electrical devices in your home.

How do you change a doorbell transformer to an electrical panel?

Step 1: Turn Off the Power. …
Step 2: Test for Power. …
Step 3: Remove the Junction Box Cover. …
Step 4: Remove the Old Transformer. …
Step 5: Mount the New Transformer. …
Step 6: Connect the Line-Voltage Wires. …
Step 7: Complete the Installation.
