Where is the defrost drain tube

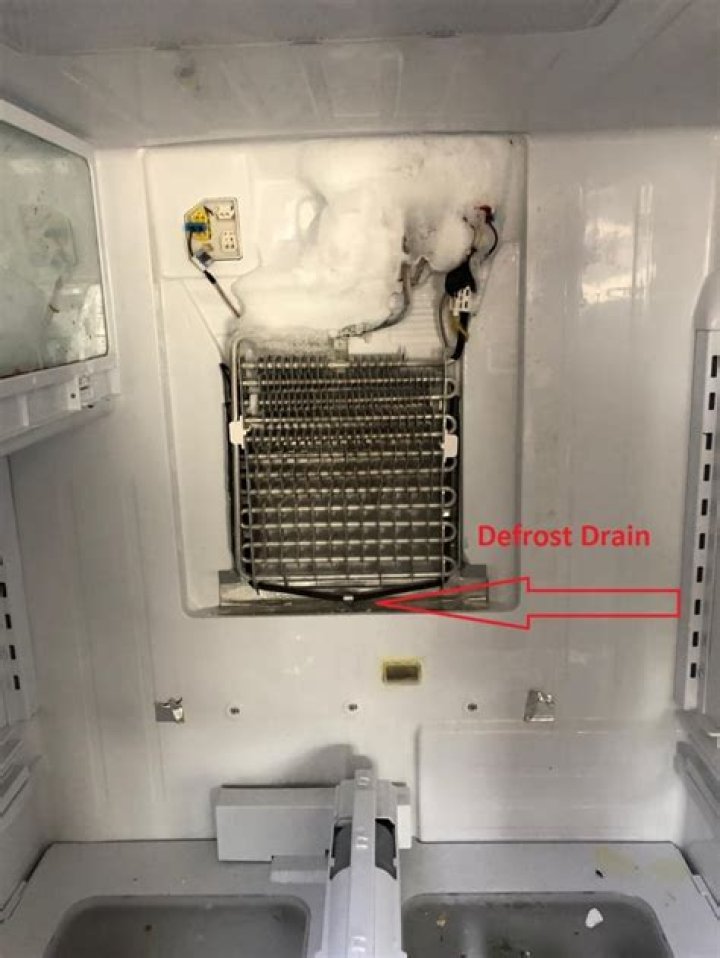

On most refrigerators the defrost drain tube and drain hole is located inside the freezer at the bottom back. Look in the freezer near the bottom and locate the drain tube and the drain hole. There may be a panel made from plastic that covers the drain tube and hole. Remove the panel with a screwdriver if applicable.

Where is the defrost tube in a refrigerator?

The drain hole and defrost tube are located in the freezer at the bottom. Locate the drain tube near the bottom of the freezer and the drain hole. A plastic panel may cover the drain tube and hole.

How do you unclog a refrigerator drain hose?

Insert one end of the plumbing snake into the drain hole as far as it will go. Push the snake up and down gently to loosen any clog. Remove the snake. Sprinkle 1 teaspoon of baking soda down the drain.

How do you unclog a freezer drain?

Clear the ice from the drain hole with a screwdriver or a piece of stiff wire. Fill a basting syringe with warm water. Place the end of the syringe into the drain hole and squeeze the bulb on the syringe to force the water into the drain hole. This removes any remaining ice from the drain.

Why does fridge leak water inside?

It’s leaking water Cause 1: A blocked defrost drain is one of the most common causes. This happens when food particles or other debris clog up the drain hose, which can lead to ice buildup and, eventually, water leaking out of the freezer and refrigerator.

Why is water freezing in the bottom of my freezer?

Ice will form at the bottom of the freezer compartment if the door is not properly closed and the cool air in the freezer is able to combine with the warm and humid air outside. To avoid the formation of ice please ensure that the cool air circulates in all compartments of your freezer.

Where is the defrost drain on an upright freezer?

Locate the drain tube near the left center under the freezer. Place a shallow pan under the drain tube. Defrost water will drain out. Check pan occasionally so water does not overflow.

Where is drain hose on Frigidaire upright freezer?

Locate the drain tube near the left center under the freezer. Place a shallow pan under the drain tube. Defrost water will drain out. Check pan occasionally so water does not overflow.

Where is drain tube on upright freezer?

Upright freezer Remove the drain plug on the inside floor of freezer by pulling it straight out. If the freezer has a base panel, remove it from the cabinet and find the drain tube near the left center under the freezer.

Do upright freezers have a drain?

Upright Freezers: All current GE upright freezers are self-defrost models. They have a defrost drain tube and a drip pan underneath. Some older GE and Hotpoint upright freezers were self-defrosting models and some were manual defrost models.

Article first time published on

How do you defrost a bottom freezer?

1. Turn Off the Power. …
2. Remove the Top Drawer. …
3. Remove the Bottom Drawer. …
4. Place a bowl with hot water in the removed drawer. …
5. Allow the hot temperature to melt the ice. …
6. Return the Removed Parts into the Freezer.

How do you get water out of a refrigerator drain pan?

In either case, a warm solution of water and vinegar can be used to free up the line. Use a turkey baster to pour the solution down the drain inside the food compartments, and ensure the drain is clean and clear. A pipe cleaner can be used to clean out the first few inches of the line as well.

Do all fridges have drip pans?

While refrigerators vary in design, the drip pan is almost universally located in the bottom of the unit. … In many refrigerators, you can access the drip pan from this area. In other models you may need to slide the refrigerator out from the wall and get to the pan from the bottom, rear of the unit.

Why is there a smell coming from the back of my fridge?

The drip pan is a container that collects condensation from the defrost drain, leading to a build up of water. If the fridge isn’t given a deep clean regularly, that drip tray can collect some pretty nasty stuff… and you likely won’t realise until it emits a truly awful smell.

Where is defrost drain on GE top freezer refrigerator?

Models with a defrost drain hole located on the back wall of the freezer just up from where the floor slopes up to the back, in the center. Models with a plastic panel held in place by a screw. Remove the screw and panel and the drain hole will be visible. If a drain hole is not visible, service is required.

Where is the drain tube on a Frigidaire side by side?

On Frigidaire models, the drain opening is more likely to be directly under the evaporative coils, and you have to access it from the back of the appliance. Don’t forget to unplug the refrigerator; then unscrew and remove the back panel to reveal the coils.

Where is the drain plug located on a refrigerator?

Generally, the drain hole is located at the bottom of your fridge. For better access, you can always remove the crisper drawers. If you cannot locate your fridge’s drain hole, check your manual for its location.
